MSPH300

The Mespack smallest vertical stick-pack machine focused on the pharmaceutical industry

MSPH300 is the vertical form fill, and seal machine for pharmaceutical products in stick packs. This machine is specially designed for the pharmaceutical industry, able to produce up to 280 sticks per minute. It complies with regulations such as GMP, GAMP5, FDA, and 21 CFR Part 11.

MSPH300 is an ideal solution to cover medium or low productions for any type of product, such as powder, liquids, pasty, and granules. It is a competitive machine specially designed also for starter pharmaceutical manufacturers.

Packaging formats

Main standard features

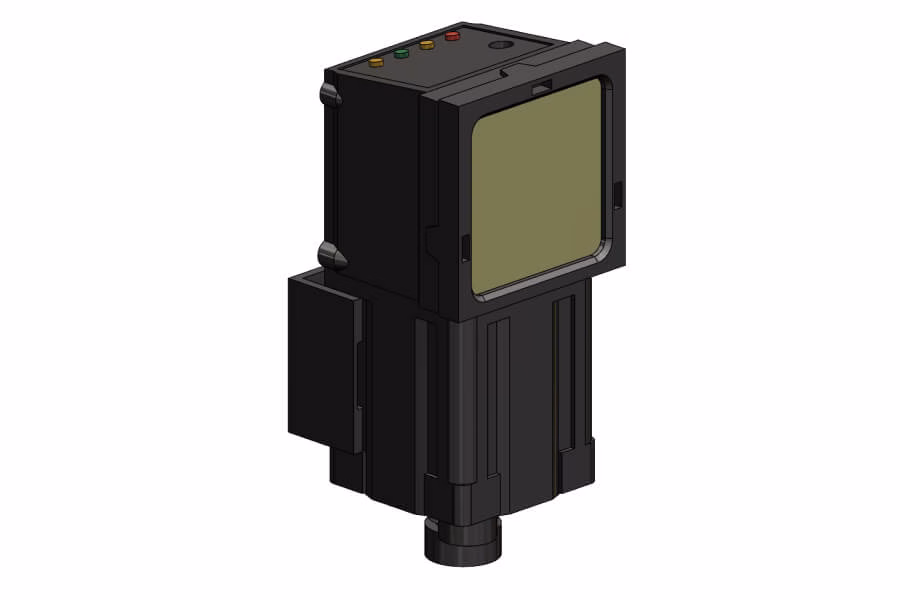

Artificial Vision Cameras
Artificial Vision Cameras
OCR/OCV technology is used to read and check expedition dates, batches, QR codes, and pharmacode.

Athena enabled (HMI and IIoT)

Automatic changeover

Free access to operating side of the machine

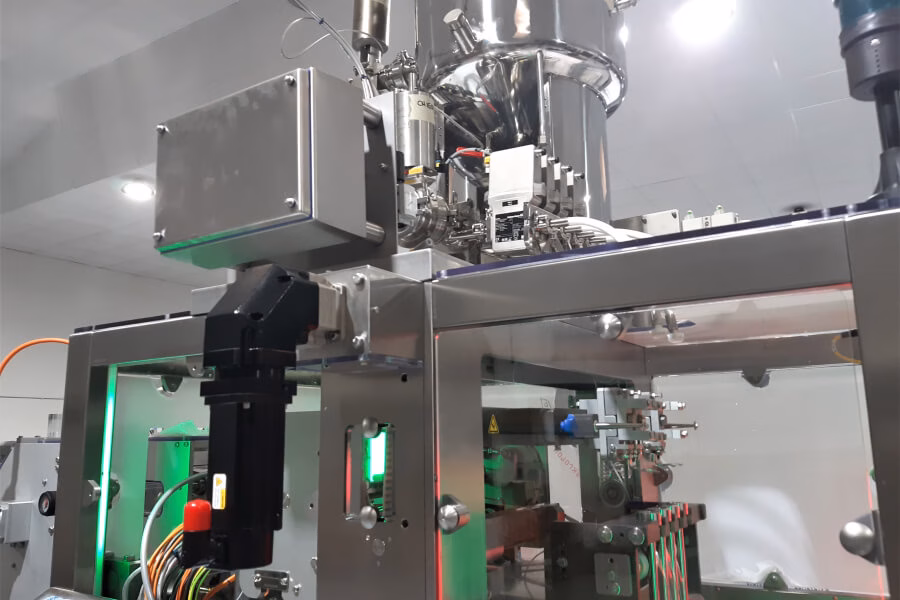

Full Servo and Stainless-Steel Machine
Full Servo and Stainless-Steel Machine
This machine is made of stainless steel in order to operate with pharmaceutical products. The full servo motorized system is also implemented into it, this gives you more coordinating control of the equipment movements.

Independent film drive unit in unwinder
Independent film drive unit in unwinder
Apart of the main film driven system, our MS Serie has got an additional servo driven pulling unit in the unwinder

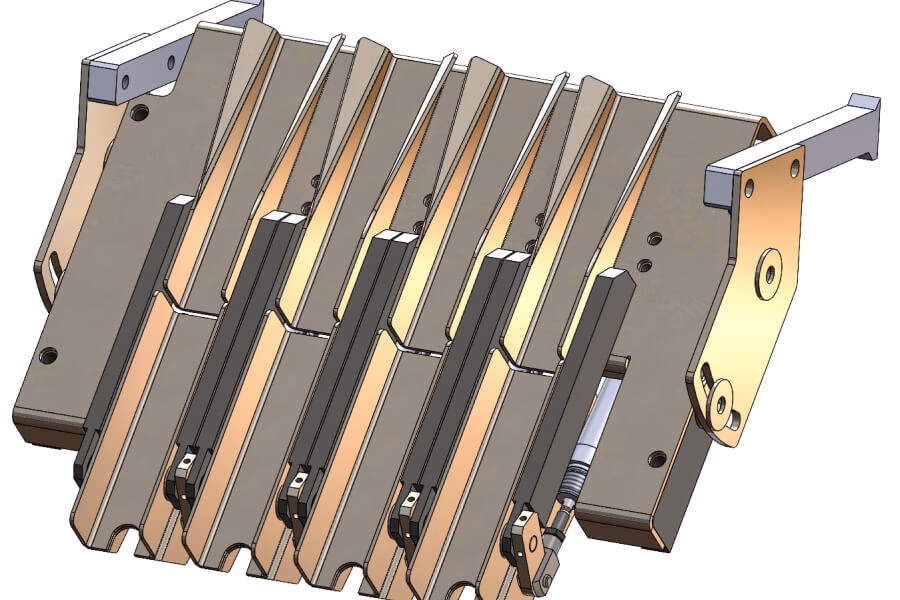

Individual Exit Chute
Individual Exit Chute
Our vertical machine focused on pharmacy has the individual exit chute with a reject possibility. It makes us save material waste.

Maximum reel width 620mm

Protocol DQ/IQ/OQ/PQ
Protocol DQ/IQ/OQ/PQ
Regarding the documentation focused on pharmacy, we offer the execution of DQ, IQ, OQ, RA, the redaction of PQ, and any other type of documentation upon the customer’s requirement.

Recyclable ready films

* Some of the items listed are optionals

Technical specifications

Machines	MSPH300 2	MSPH300 3	MSPH300 4
Max. Volume (cc)
Max. Output (p.p.m.)	140	210	280
Max. Format (mm)	60 x 160	45 x 160	35 x 160
Min. Format (mm)	17 x 50	17 x 50	17 x 50

The final speed will depend on product and film characteristics, it may change according to projects.

Dosifying products

A wide range of dosing systems for all types of products on the market. More information

Machines	MSPH300 2	MSPH300 3	MSPH300 4
Liquid / Pasty
Pieces
Powder
Granules

Closing pouch systems

Perfect close systems for your flexible pouches. More information

Machines	MSPH300 2	MSPH300 3	MSPH300 4
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.

Automations and User Friendly

Let automation to enhance your machine downtime. More information

Machines	MSPH300 2	MSPH300 3	MSPH300 4
Automatic Changeover
Quick Changeover
Autosplice Unwinder

Die-cut solutions

Find your perfect fit for all your designs. More information

Machines	MSPH300 2	MSPH300 3	MSPH300 4
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges

Coding System

One coding system for each project. More information

Machines	MSPH300 2	MSPH300 3	MSPH300 4
Laser
Inkjet
Thermo transfer
Emboss Coder

Hygienic Solutions

Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information

Machines	MSPH300 2	MSPH300 3	MSPH300 4
Gas Flush
Laminar flow
UV Lamp
Washdown
