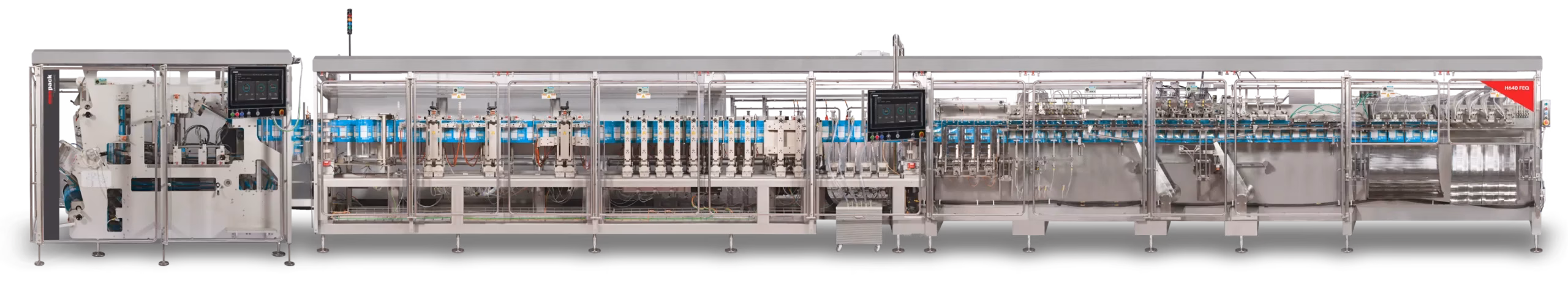

Mespack H640 4-up solution for form-fill-seal pouches with a maximum width of 160mm; output of 220 flat pouches per minute. This machine is specially designed for the food industry. It is best suited for a variety of product types, such as liquids, powders, solids, and pieces. Different applicators and options can be integrated into this machine, including tear notches, hole punches, round edges, euro holes, etc.
The H Series is remarkable for its modularity, flexibility and is capable of producing various shapes and types of packaging
Unwinder section
- Standard unwinder
- Servo driven unwinder
- Unwinder with 2 reels
- Automatic unwinder with 2 reels
Zipper section
- Zipper form
Forming section
- Sealing
- Matrix
- Tear Notch
- Cutting units or laser cut
- Continuos pulling and servo driven pouch pulling
- Sealing cameras
Transport section
- Opening, streching, pulling
- Top sealing jaw
- Ultrasonic sealing jaw
Pouch exit section
- Systems: ramp, conveyor belt or pick and place
- Cameras to control the pouch aspect

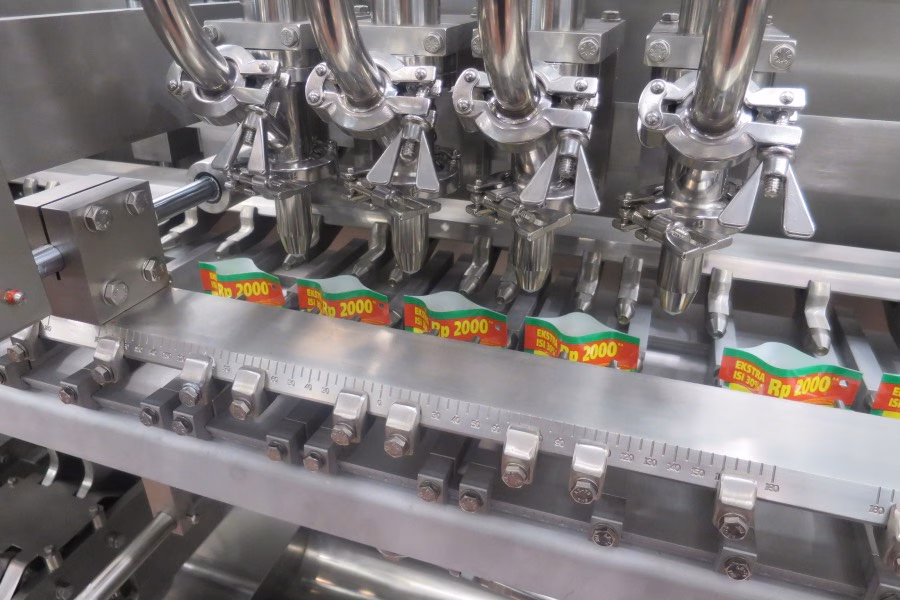

Filling station
Liquids
Solids
Granules
Powders
Unwinder section
- Standard unwinder
- Servo driven unwinder
- Unwinder with 2 reels
- Automatic unwinder with 2 reels
Zipper section
- Zipper form
Forming section
- Sealing
- Matrix
- Tear Notch
- Cutting units or laser cut
- Continuos pulling and servo driven pouch pulling
- Sealing cameras
Transport section
- Opening, streching, pulling
- Top sealing jaw
- Ultrasonic sealing jaw
Pouch exit section
- Systems: ramp, conveyor belt or pick and place
- Cameras to control the pouch aspect
Filling station
Liquids
Solids
Granules
Powders
The H Series is composed of 18 different HFFS machines with multiple versions, which enables the Mespack team to offer the most suitable models to our customers. The majority of our machines are made of modular construction and have common parts, excluding the main frame, which facilitates the storage of spare parts. The main frame can be supplied with all types of fillers and accessories. The machines of this new generation are of robust construction, user friendly, and proven to be straightforward to operate and maintain. The H-Series is remarkable for its flexibility and the possibility of producing different shapes and pack presentations: flat or stand up pouches, cap fitments for easy product pouring, straw attachments for soft drinks, reclosable zipper systems, among others. A vast number of different fillers are available, such as augers and volumetric fillers, pumps, weighers, as well as other customized dosing systems. Product protection is also a priority, we have several solutions for gas flushing to minimize the residual oxygen contents in the pack, and C.I.P. or S.I.P. cleaning systems.
Adapted to work with sustainable materials
New Controls: Athena

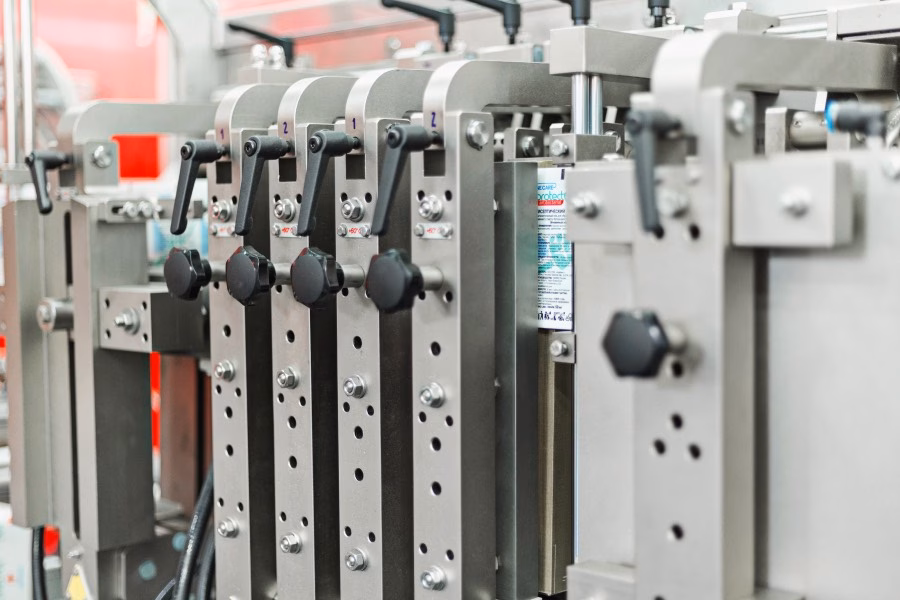

Sealing Stations
Our experience in flexible packaging has allowed us to offer a quick changeover system of sealers, which reduces the adjustment time. Furthermore, our sealing groups are able to work with various materials, thus obtaining optimum quality with minimum energy consumption.
Filling Stations
To maximize production in small spaces, the H-series offers the possibility of adding several filling stations. Consequently, the production speed can be increased.

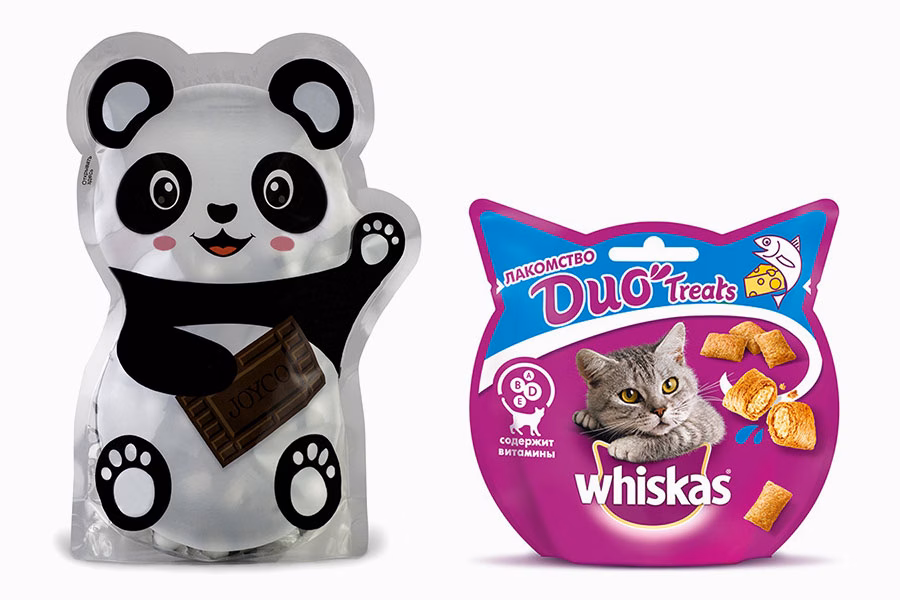

Shaped Pouches
The various Mespack die-cuts solutions, such as die cut, tear notch, eurohole, hole punch, double scissors, laser cut, round edges, among others, offer a wide possibility to personalize and make a variety of pouch designs.
Main standard features
- 18.5” color touch screen
- Independent unwind system with autosplice features (optional)
- Automatic adjustment control of seal jaws position (optional)
- Automatic hole punch correction system for stand up pouches
- Servo driven change over system for plough formation
- 3 to 5 different filling stations
- Cam driven walking beam (for big formats)
- Static pouch stretching prior to sealing
- Pouch reject station
- PLC automatic lubrication system
- Roller servo driven stroke indexing system
- Ultra-clean versions (optional)
- Laser coders and scorers (optional)
- ATEX compliance (optional)
- Film sterilization system (optional)
- Laminar flow (optional)
- MAP (Modified Atmosphere Packaging)
- Ultrasonic sealing (optional)
Models

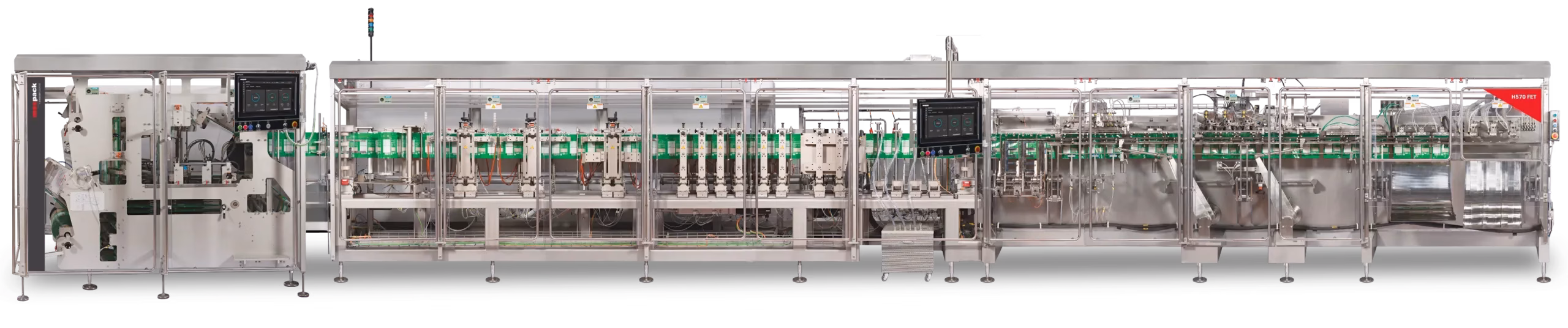

H570
Mespack H570 Triplex solution forms and fills pouches with a maximum width up to 190mm and a maximum output of 180 pouches per minute. It complies with simplicity and robustness standards of Mespack design. It is designed to offer solutions for big stand-up and flat pouch formats.
H540
This horizontal packaging machine for baby food incorporates a servo-motorized pouch moving system to guarantee precision and accuracy while reducing product and film waste. It can produce up to 300 pouches per minute.
It is specifically designed for a high-volume production of stand-up pouches with a choke-proof top spout. It also meets the safety cleanliness and performance needs of the baby food industry.
H440
The horizontal packaging machine for small stand-up pouch H440 follows the line of the simplicity and robustness standards of Mespack design. Consequently, this machine offers high-speed solutions for the small and medium flat pouches and stand-up pouches of up to 110mm in width in the 4-up version.

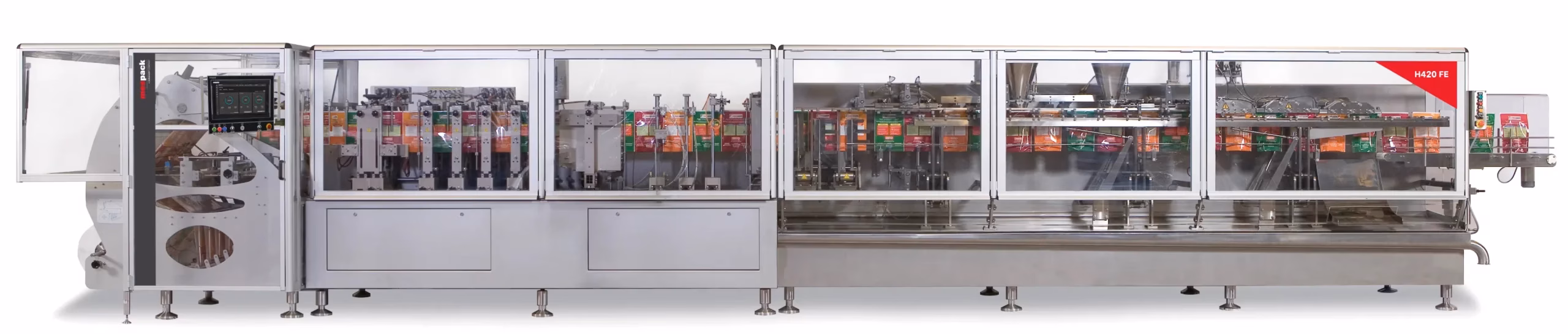

H420
The horizontal packaging equipment for heavy pouches H420 fully complies with the simplicity and robustness standards of Mespack design. For this reason, this HFFS machine is especially designed with stronger grippers and transport system to allow high production of heavy flat and stand-up pouches. Available in the Simplex and Duplex version.

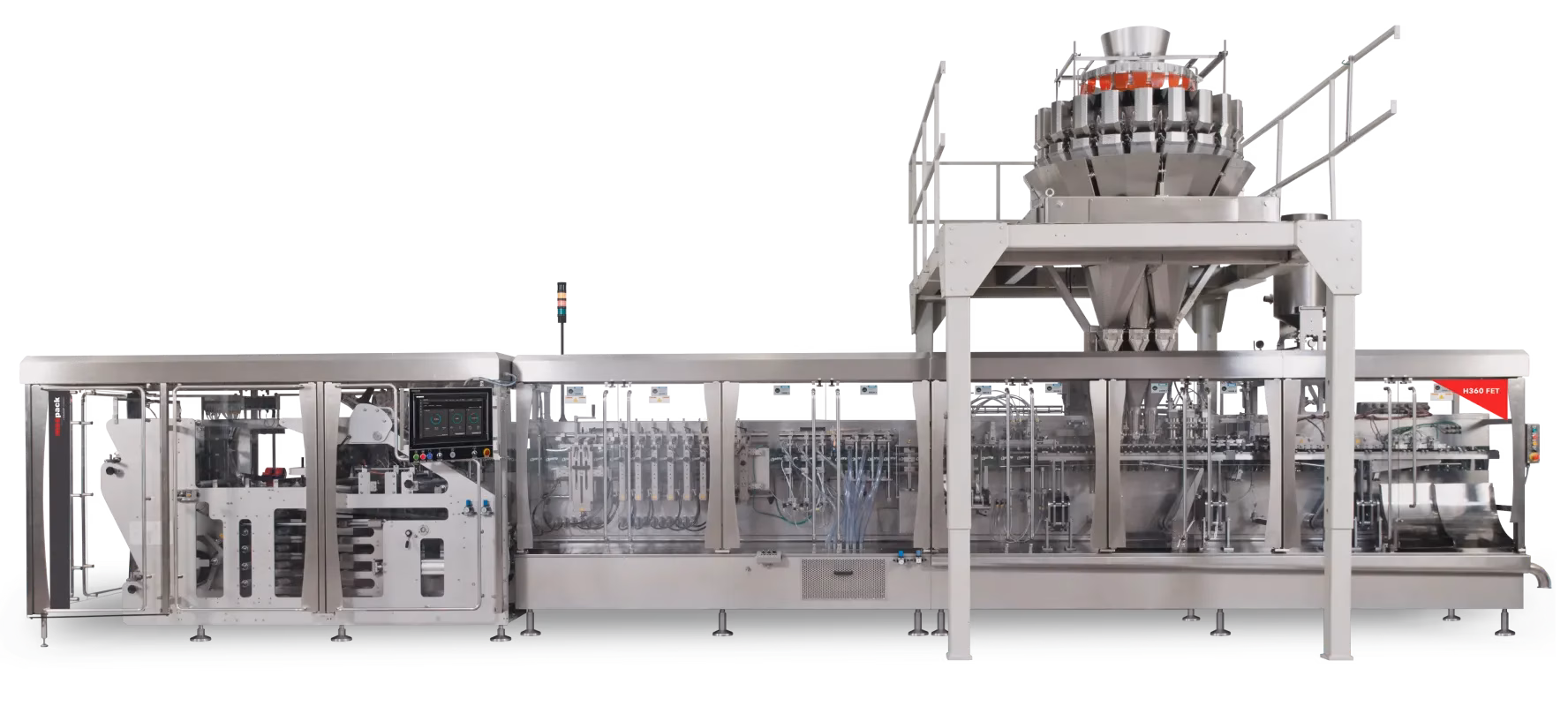

H360
The horizontal packaging machine for retort pouches H360 complies with the simplicity and robustness standards of Mespack design, the H360 machine is fully prepared to produce small and medium size flat sachet and stand-up pouches with the possibility of retort application. It can produce up to 260 ppm with stand-up pouch, and 320 ppm with flat pouch.
H330
The high-capacity packaging machine for cosmetic pouches complies with the simplicity and robustness standards of the Mespack design. This HFFS machine is fully prepared to produce small size flat pouches with small top cap. It can achieve a high production capacity up to 340 ppm thanks to its 6-up version.
In addition to the fact that it has been designed to offer great versatility, it allows for multiple accessories and applications to be installed upon request, covering all specific packaging need.
H320
The horizontal packaging machine for stand-up pouch H320, as well as the rest of the range, complies with the simplicity and robustness standards of Mespack design. This HFFS machine is particularly indicated to cover high speed production needs for small and medium size flat sachet and stand-up pouches.

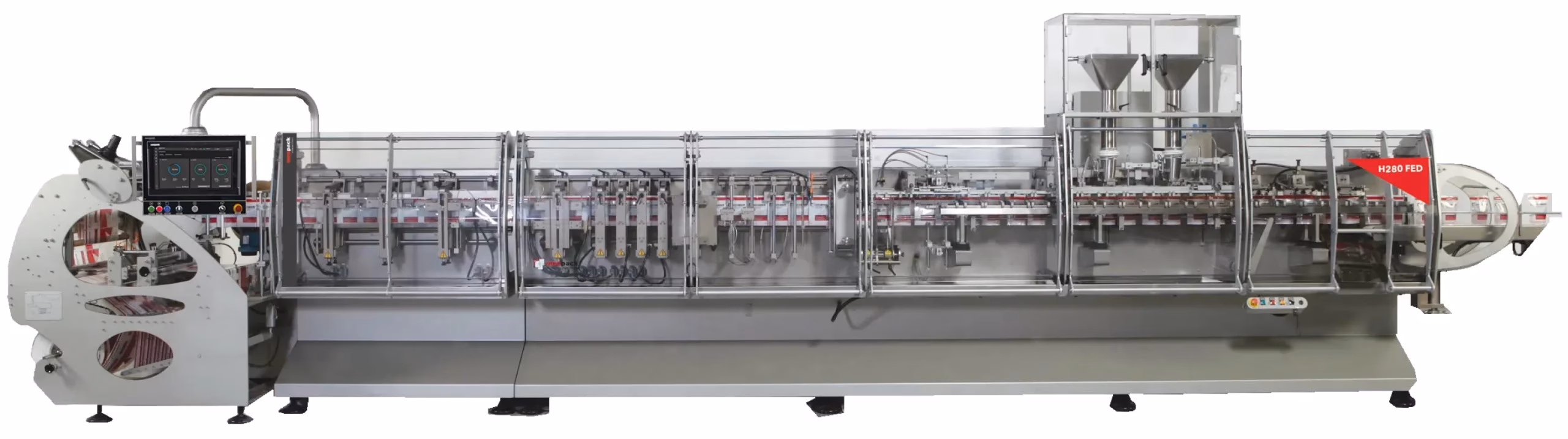

H280
The H280 is an horizontal form fill and seal machine with advanced technology and a precise mechanical design. As well as the rest of the range, complies with the simplicity and robustness standards of Mespack design. This HFFS machine is particularly indicated to cover high speed production needs for small and medium size flat and stand-up pouches.

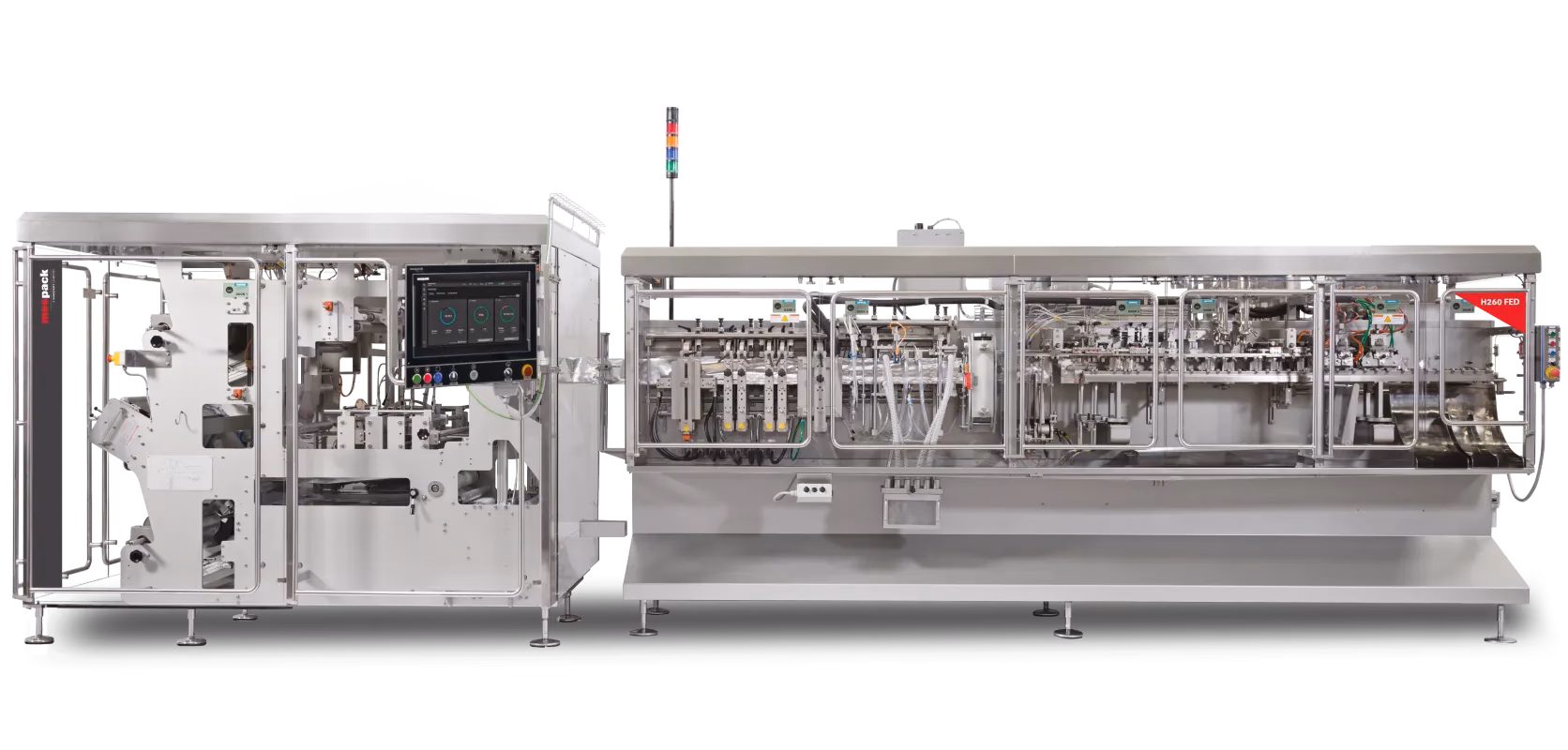

H260
The horizontal packaging equipment to fill multicomponent pouches H260 has been designed complying with the simplicity and robustness standards of Mespack.

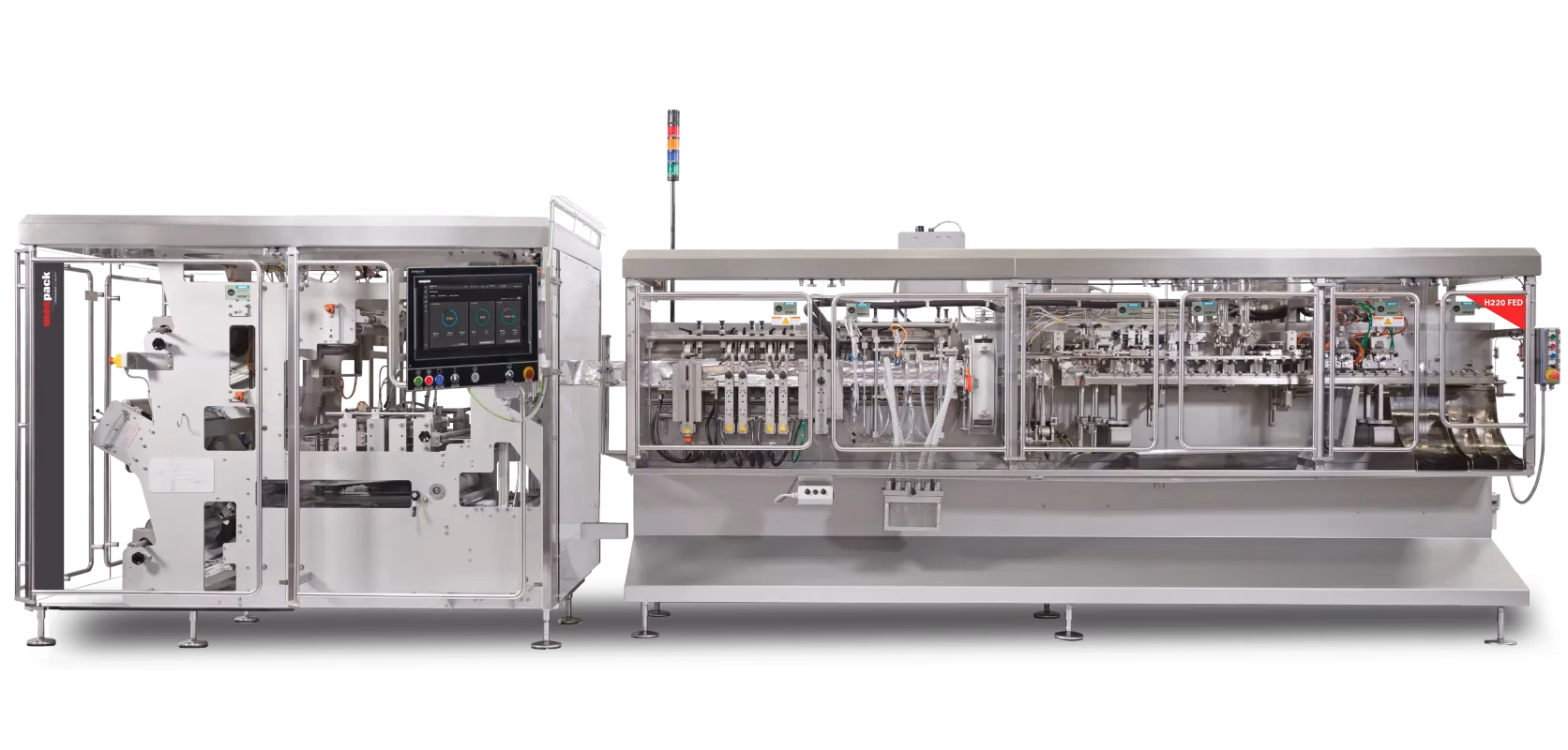

H220
The high capacity horizontal packaging equipment for pouches with straw H220 complies with the simplicity and robustness standards of Mespack design, which are highly regarded in the industry. This HFFS machine is a machine designed to produce small and medium size flat sachet and stand-up pouches with cap or straw, specially indicated for beverage solutions.
H180
Complying with the simplicity and robustness standards of Mespack design, H180 is destined to produce medium size flat and stand-up pouches with different options of applicators. It is a flexible machine, since the same machine can be used to meet different customer needs, always with maximum efficiency.
Producing up to 1.500 c.c. pouches, this machine is indicated for frozen foods, prepared foods, sauces & condiments, powders or liquids, beverages, dried fruits, snacks, confectionaries, dry mixes, and more.
H170FE
This equipment has been developed to complete the cost-competitive range of H Series machines in order to produce stand-up pouches.
To ensure a high packaging capacity, up to 2 filling stations option is available with this solution. The H170 keeps the rugged construction which is characteristic in the Mespack program. It is a compact equipment with minimum maintenance and recommended for any kind of industrys, especially food, home care, and personal care. The different products can be filled with this machine: liquids, solids, granules, and powders.
H170
The high-speed flat sachet equipment has been developed to complete the competitive range of HFFS machines.
This model is more compact and user friendly as all electric controls are integrated within the machine frame.
To ensure a high packaging capacity, up to 2 filling stations option is available with this solution. The H170 keeps the rugged construction which is characteristic in the Mespack program. It is a compact high-speed equipment for around the clock operation with minimum maintenance and the floorspace needed is limited.
H150
Mespack H150 has been designed following company standards of simplicity and robustness. It is a HFFS machine designed to produce medium sized flat sachet pouches.
Being able to produce up to 900 c.c. pouches, this equipment is indicated for frozen foods, prepared foods, sauces & condiments, in powder or liquid, beverages, dried fruits, snacks, confectionaries, dry mixes, etc.
Thanks to its versatility, it is very simple and fast to install multiple accessories and applications on demand to meet any specific packaging need.
H145
Mespack H145 is able to form, fill and seal stand-up pouches up to 500 c.c. It is a low cost horizontal packaging equipment, up to 4 filling stations are available to this model.
The continued effort in R+D of Mespack to adapt our range of machines to the actual market demands allows us to offer a multitude of options at a fair price.
H140FE
Mespack H140FE is the most reliable and compact packaging solution for small flat or stand-up pouches, the smallest machine which can make stand-up pouch.
This solution is developed in order to respond to the growing demand for high quality, low footprint, and cost-competitive packaging solutions for the production of medium and small-sized pouches.
It is recommended for any kind of industry, especially food, home care, and personal care, the products as liquids, solids, granules, and powder can be filled.
H140
Mespack H140 is high speed packaging solution for small flat pouches.
The main application of this equipment is for twin or stringed sachets which may contain same or different products, i.e. coffee-milk, sugar-salt, ketchup-mayonnaise. Another wide extended use for this machine is in the cosmetic industry for creams, lotions or refreshing towelettes.
H130
The main application of this model is for twin or stringed sachets which may contain same or different products, p.e. coffee-milk, sugar-salt, ketchup-mayonnaise. Another wide extended use for this machine is in the cosmetic industry for creams, lotions or refreshing towelettes. This machine can produce up to 220ppm.

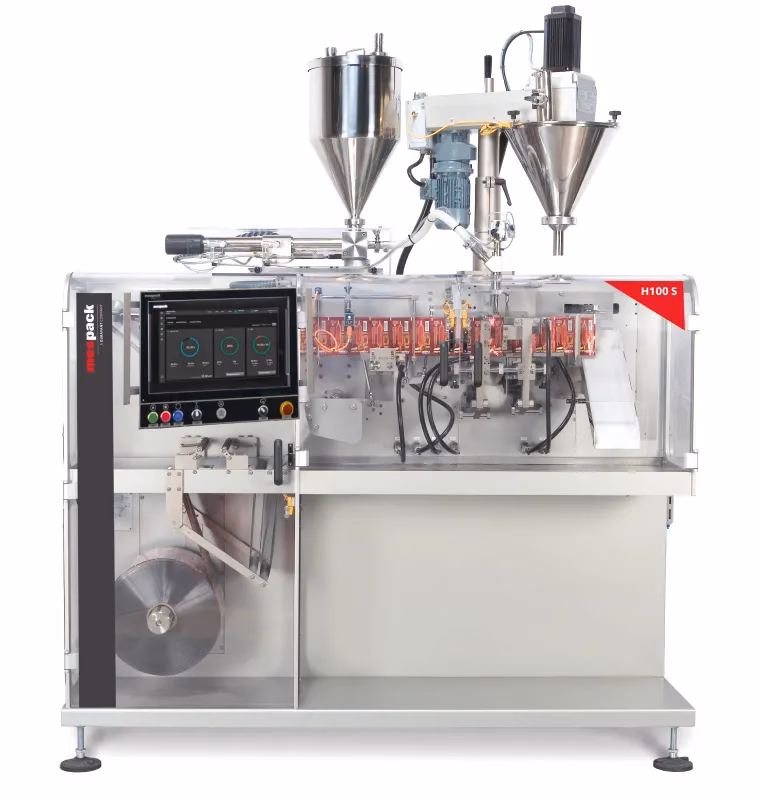

H100
Mespack H100 is small and flexible packaging solution. It is remarkable for its versatility, high efficiency, and economic solution.
Suitable for both single or stringed sachets, it can incorporate a wide range of accessories as date coders, notches, hole punchers, towelette fillers, etc.
