Home » Models » IMH

IMH

The most versatile packaging equipments of Roberts can run as Roll-Stock or with Pre-made pouch, it is specially designed for starter manufacturers.

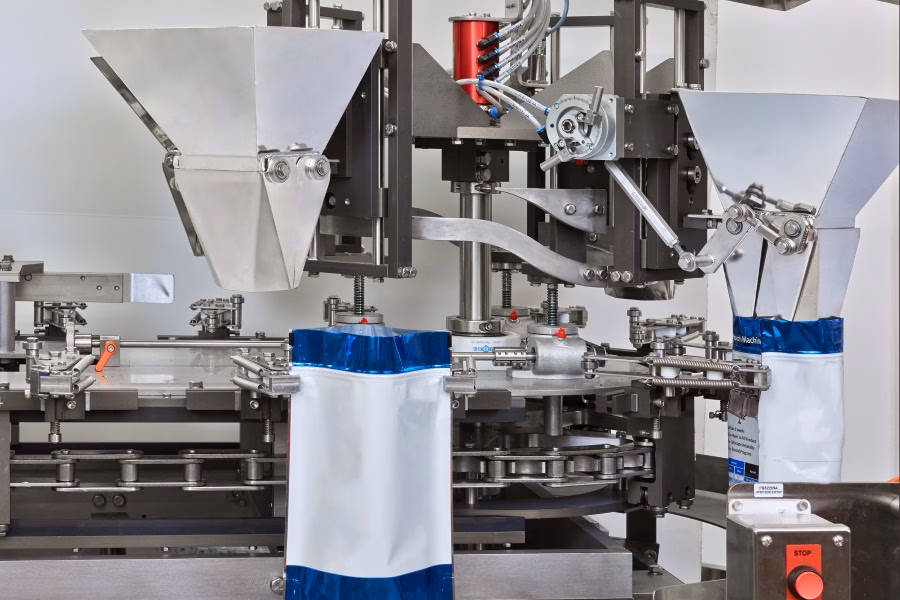

Mespack IMH is an intermittent motion form-fill-seal solution, delivering a wide variety of packaging options in one base machine. It is mainly featured by the combination of being able to process pouches from roll-stock and a wide range of pre-made pouches making this our most versatile solution. These solutions are perfect options for companies that want to begin discovering the exciting and growing world of stand-up, reclosable package style.
Change between Roll-Stock and Pre-Made can be done with only a simple program adjustment. The funnels are provided with tool-less changeovers to ensure quick replacements.

Packaging formats

Main standard features

  • A variety of control/servo combinations
  • Flexibility

    Flexibility

    Flexibility
    The IMH Series run packages holding a few ounces to greater than 12 pounds. The impressive filling options include: multi- head weighing, augers, cup fillers and manual. Customers can also achieve a combination of automatic and manual filling.

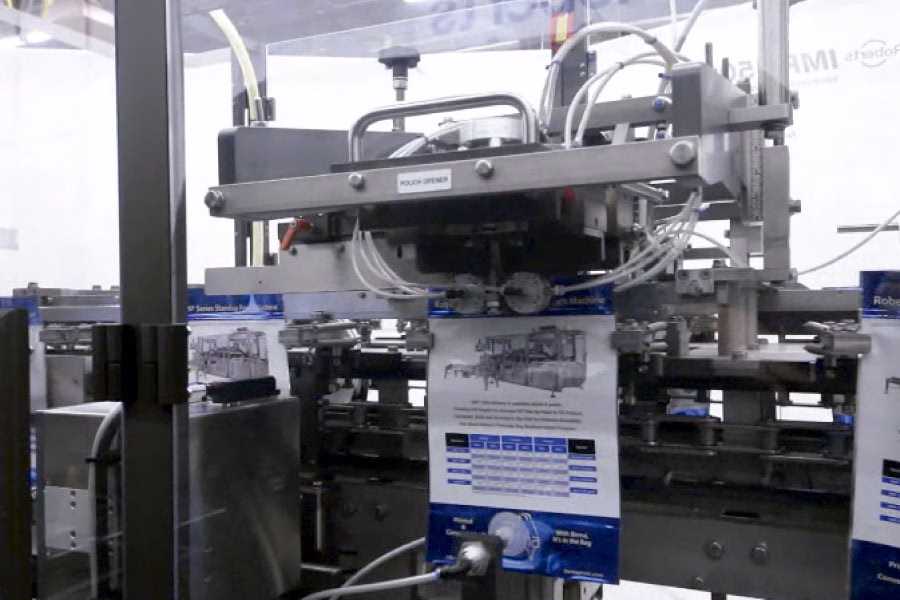

  • Pouch Opening System

    Pouch Opening System

    Pouch Opening System
    The pouch opening system includes Pneumatic actuators and vacuum cups to ensure a good aperture before the filling station.
  • Servo motion for key operating areas
  • Tool-free funnel and baffle changeover

    Tool-free funnel and baffle changeover

    Tool-free funnel and baffle changeover
    This tool-less quick changeover system for funnels and baffles is designed to enhance format change time.

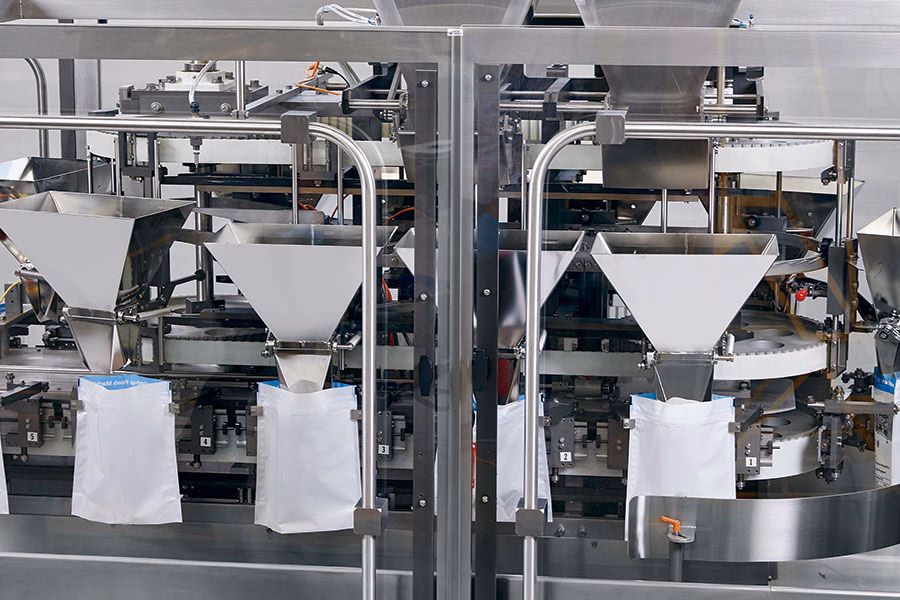

  • Travelling Funnel

    Travelling Funnel

    Travelling Funnel
    Our travelling funnel is used for sucha a continuous as an intermittent motion machines. Ihis system allows to increase the machine speed significantly.

* Some of the items listed are optionals

Smart Functions
Autochangeover
Autosplicer
Advanced Maintenance
* Optionals

Infeed Conveyor

Our infeed conveyor system include 3-phase motor for destacker and flapper wheels and 3 photoelectric sensors to ensure the position to tranfer into the machine.

Sealing stations

Our experience in flexible packaging has allowed us to offer a quick changeover system of sealers, which reduces adjustment time and human error. Additionally, it is a tool-less operation.

Flexibility

The IMH Series run packages holding a few ounces to greater than 12 pounds. The impressive filling options include: multi- head weighing, augers, cup fillers and manual. Customers can also achieve a combination of automatic and manual filling.

Technical specifications

MachinesIMH1500
Max. Volume (cc)5000
Max. Output (p.p.m.)60
Max. Format (mm)305 x 381
Min. Format (mm)101.6 x 152.4
Filling StationsTravelling Funnels

The final speed will depend on product and film characteristics, it may change according to projects.

A wide range of dosing systems for all types of products on the market. More information
MachinesIMH1500
Liquid / Pasty
Pieces
Powder
Granules
Perfect close systems for your flexible pouches. More information
MachinesIMH1500
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesIMH1500
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesIMH1500
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesIMH1500
Laser
Inkjet
Thermo transfer
Emboss Coder
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesIMH1500
Gas Flush
Laminar flow
UV Lamp
Washdown

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging

On-Cloud

An edge computer, placed in the machine cabinet, is responsible for collecting and sending data to the cloud through an internet connection to be stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the machine’s data, belonging to the same customer, can be consolidated in a unique Mespack Athena dashboard view.

Main Features

  • Data collection
  • Dashboards
  • On-Machine control warning system
  • Multi-device
  • Multi-machine
  • Plant overview
  • Machine comparison
  • SMS/e-Mail
  • Data Available everywhere at anytime
  • Software updates
  • Identifies trends to avoid unexpected issues
  • Reduction of TCO
  • Better understanding of machine performance
  • Analyzes data in detail to increase production KPIs
  • Decreases maintenance costs due to preventive maintenance
