W Series CASE PACKING

High Production Capacity for Small Spaces and Low Operator Maintenance time

The wrap around case packing requires only one machine which uses a flat cardboard blank that is wrapped around the product and sealed with jets of hot glue. As result of this system a single machine can reach high production speeds, consequently reducing space and lowering maintenance costs.
A single operator can cover two wrap-around equipments in the same room without any other assistance. We offer equipment adapted to intermittent and continuous cycles, depending on the wrap-around model and the requirements of the product to be packed.

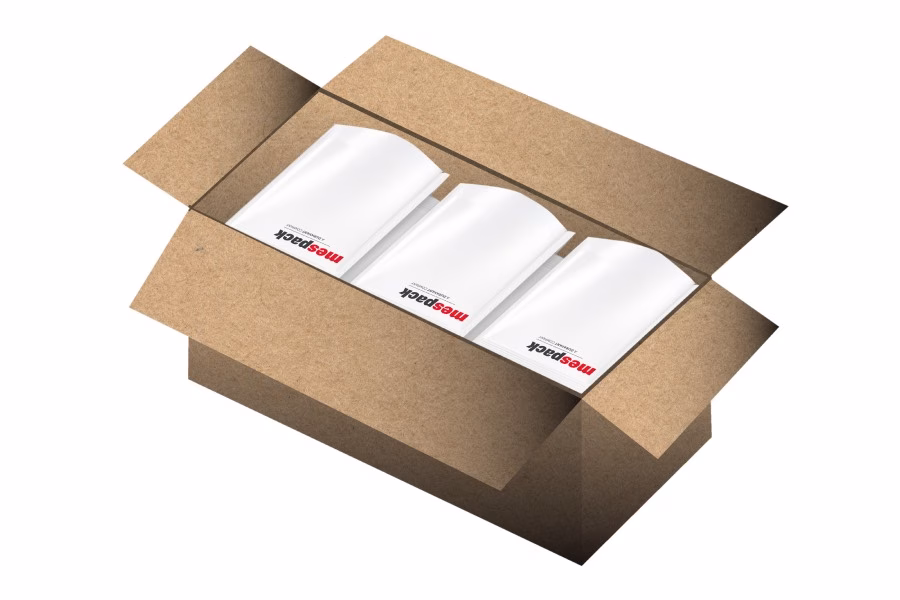

Packaging formats

Main standard features

Automatic hotmelt feeder (optional)

Boxes filled by means of robot, arms, pushers or pick and place devices in accordance with product and packaging configuration

Capacity to maoeuvre trays

Case check weighter (optional)

Electronic synchronization: one servo motor for every device

Extended blanks magazine

Full automatic changeover (optional)

Open flap detection

pushers or pick and place devices according to product and packaging configuration.

Specific speed program for every format

Use of sustainable materials
Use of sustainable materials
The use of sustainable materials is not the sole objective. The W-series allows for an extremely significant amount of packaging material savings, as a result of the specific box type which is produced. The higher production, the greater the carboard savings amount.

* Some of the items listed are optionals

Smart Functions

* Optionals

How a Wrap-Around box is Assembled in a continuous machine

W-Series Forms and Seals the Case Automatically Around the Product

The W Series stands for versatility. This series of equipment offers versions that adapted to all types of packaging as well as a wide range of formats, box sizes, and trays, including display trays up to 600×400 mm and boxes with independent lids, which are created by the machine itself.

The use of sustainable materials is not the sole objective. The W Series allows for significant saving in packaging material, due to the type of boxes produced. The higher the production, the greater the cardboard savings.

Mespack Wrap-Around Technology offers higher production capacity in a smaller space and low operator maintenance time.

A single operator is able to cover two wrap-around equipment in the same room without any assistance. We offer equipment that is adapted to intermittent cycles and continuous cycles, depending on the wrap-around model and the requirements of the product to be packed.

In regard to intermittent equipment, we have the W7200 and W700 PRO models, which are capable of packing 10 to 20 boxes per minute. In reference to the W8400, W8500 and W8600 models, we have continuous cycle equipment which pack 42 boxes per minute.

Technical especifications

WRAP-AROUND Intermittent MOTION	L (mm)	W (mm)	H (mm)	OUTPUT CASES / MINUTE (cpm)
W7200	600 max 220 min	400 max 100 min	375 max 120 min	Up to 15 cpm
W7000 PRO	600 max 185 min	400 max 100 min	400 max 60 min	Up to 18 cpm
W8400	500 max 185 min	380 max 120 min	400 max 110 min	Up to 25 cpm
W8500	510 max 185 min	380 max 120 min	400 max 105 min	Up to 35 cpm
W8600	450 max 185 min	390 max 120 min	385 max 110 min	Up to 42 cpm
