Home » Models » RM260 SC

RM260 SC

The rotary machine with the most reduced footprint and quickest changeover

The 8-station rotary machine includes fill and seal packaging systems that operate with intermittent motion filling and sealing. Operating with a reduced footprint, the RM260 SC can fill pre-made stand-up pouches that are automatically fed from a manually loaded in-feed conveyor and individually collected in order to enter the machine. This machine model is operable with zip pouches as well. Pouches move through the stations with a rotary carrousel system, which is the location of the groups. The RM260 SC is operational with dosing powder, granule, and pieces products. The machine includes a rejection system for unopened pouches or unfilled pouches. Upon conclusion of the process, pouches are discharged down a chute, and then delivered to the customer. The changeovers can be done in 15 minutes.

Packaging formats

Main standard features

  • 15-Minute changeovers
  • Automatic and manual filling
  • Following funnels pack difficult product, and minimize spillage
  • Gas Flushing options and more
  • Highly customer-customizable
  • Maximizes output and minimizes scrap
  • Servo driven, positive placement pouch clamps
  • Servo motor intelligence
  • Speeds up to 60 pouches per minute
  • Tool Free Funnels
  • Unique, pouch opening system
  • Wide range of package styles

* Some of the items listed are optionals

Smart Functions
Athena
Autochangeover
Recyclable Ready
Advanced Maintenance
Connectivity
* Optionals

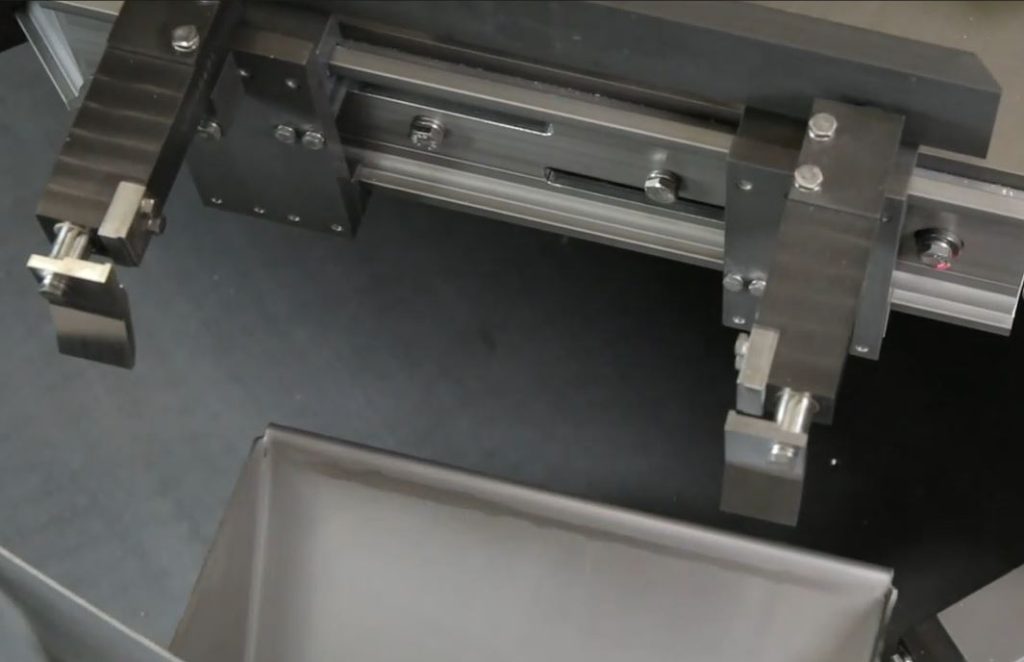

Auto Changeover

The pouch clamps have an innovative auto changeover feature, hence allowing for an HMI-recipe based push bottom changeover.

Product Settler (optional)

The system is available for bottom-oriented pouch agitation during the filling process to help settle the product below the top seal area. The height of the system is adjustable with the use of a quick release handle.

Infeed Conveyor

Our infeed conveyor system includes a 3-phase motor, which creates a destacker position for the transfer into the machine.

Technical specifications

MachinesRM260 SC
Max. Volume (cc)3400
Max. Output (p.p.m.)60
Max. Format (mm)266 x 368
Min. Format (mm)101 x 150
Filling Stations1-2

The final speed will depend on product and film characteristics, it may change according to projects.

A wide range of dosing systems for all types of products on the market. More information
MachinesRM260 SC
Liquid / Pasty
Pieces
Powder
Granules
Perfect close systems for your flexible pouches. More information
MachinesRM260 SC
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesRM260 SC
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesRM260 SC
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesRM260 SC
Laser
Inkjet
Thermo transfer
Emboss Coder
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesRM260 SC
Gas Flush
Laminar flow
UV Lamp
Washdown

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging

On-Cloud

An edge computer, placed in the machine cabinet, is responsible for collecting and sending data to the cloud through an internet connection to be stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the machine’s data, belonging to the same customer, can be consolidated in a unique Mespack Athena dashboard view.

Main Features

  • Data collection
  • Dashboards
  • On-Machine control warning system
  • Multi-device
  • Multi-machine
  • Plant overview
  • Machine comparison
  • SMS/e-Mail
  • Data Available everywhere at anytime
  • Software updates
  • Identifies trends to avoid unexpected issues
  • Reduction of TCO
  • Better understanding of machine performance
  • Analyzes data in detail to increase production KPIs
  • Decreases maintenance costs due to preventive maintenance
