Mespack H570SC is an ideal solution for packaging products such as powders, granules, liquid, etc. This equipment allows products to be presented in the most innovative ways using the most modern techniques available. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc.
The HSC Series operates with every type of pre-made pouch and offers the freedom to use all pouches available to customers
Pouch infeed section
Transport section
- Opening, streching, pulling
- Top sealing jaw
- Ultrasonic sealing jaw
Reject section
Pouch exit section
- Systems: ramp, conveyor belt or pick and place
- Cameras to control the pouch aspect
Filling station
Liquids
Solids
Granules
Powders
Pouch infeed section
Transport section
- Opening, streching, pulling
- Top sealing jaw
- Ultrasonic sealing jaw
Reject section
Pouch exit section
- Systems: ramp, conveyor belt or pick and place
- Cameras to control the pouch aspect
Filling station
Liquids
Solids
Granules
Powders
The HSC-Series is compatible with all types of pre-made pouches, and offers the freedom to use any pouch which is available to the customer. Furthermore, it is able to use the dosage of liquids, solids, granules and powder. The HSC-Series is composed of a three lane pouch feeding conveyor, a pick, and an area to transfer pre-made pouches to both a walking beam system as well as the main module where they will be opened, filled, and top sealed. Available optional equipment includes a full range of items, such as coders, hole punchers, notchers, cap fitments, spout applicators, as well as various filling systems for powder, granules, liquids, and pasty products. Moreover, we are able to install multihead weighers. A variety of models are available in accordance with pouch dimensions, volumes, and capacities.
Adapted to work with sustainable materials
New Controls: Mespack Athena

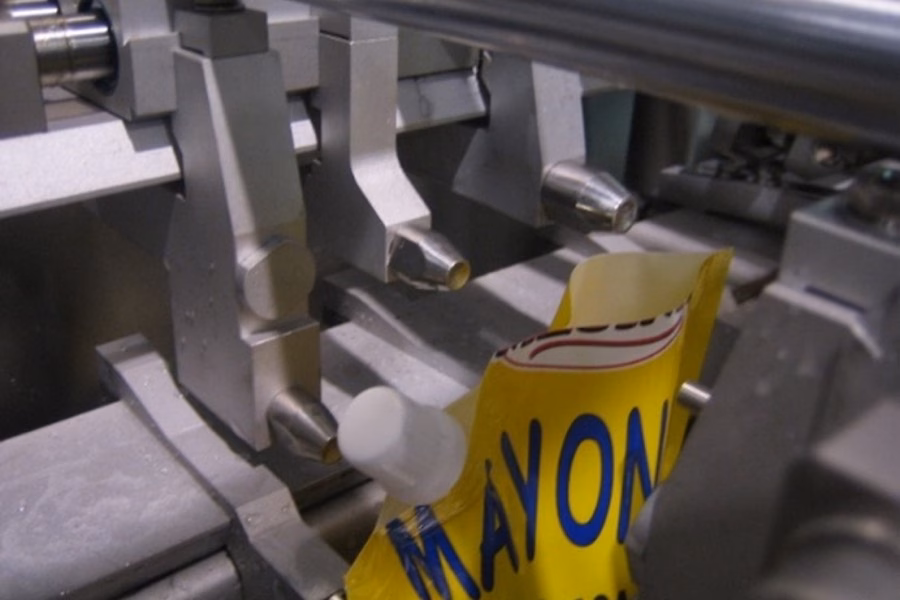

Dosing Station With Integrated Edge Tap
The current generation edge cap applicator incorporates state of the art technology whilst guaranteeing high efficiency and quality. The edge cap is sealed during the formation process prior to filling.
Pouch Inspection Station for Vision Cameras
At Mespack, we are following the lastest technology in different fields. Using an artificial intelligence system is one of our strengths. It is used to control que pouch quality and the verification of pouch formats.

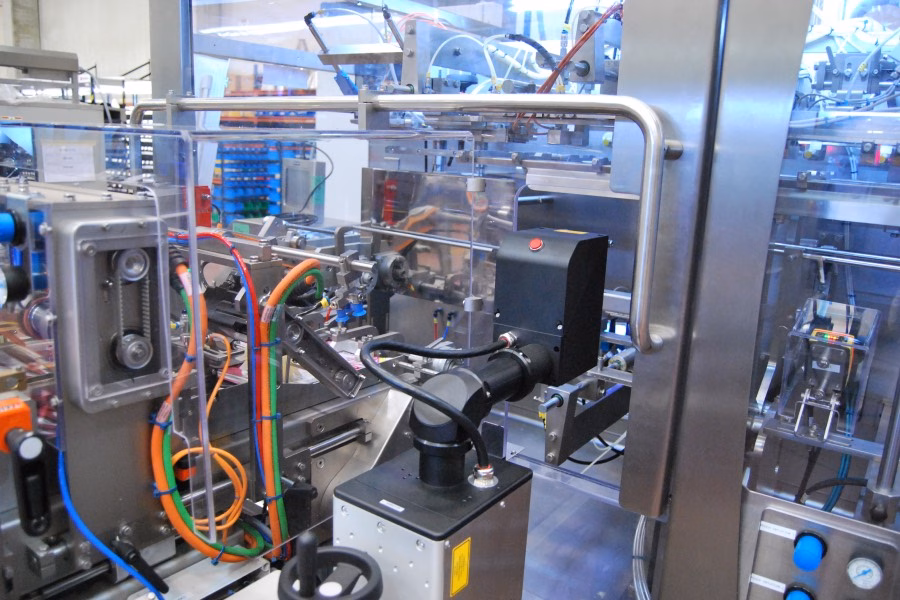

Additional Station for Laser or Inkjet Encoders
We have a wide variety of coding systems, such as laser or inkjet encoders, allowing for the printing of product expiration dates, QR code, and barcodes, etc.
Main standard features
- Additional station for laser or inkjet encoders
- Pouch inspection station for vision cameras
- Mespack Athena enabled (HMI and IIoT)
- ATEX compliance (optional)
- Laminar flow (optional)
- Wash down (optional)
- Easy to operate
Models

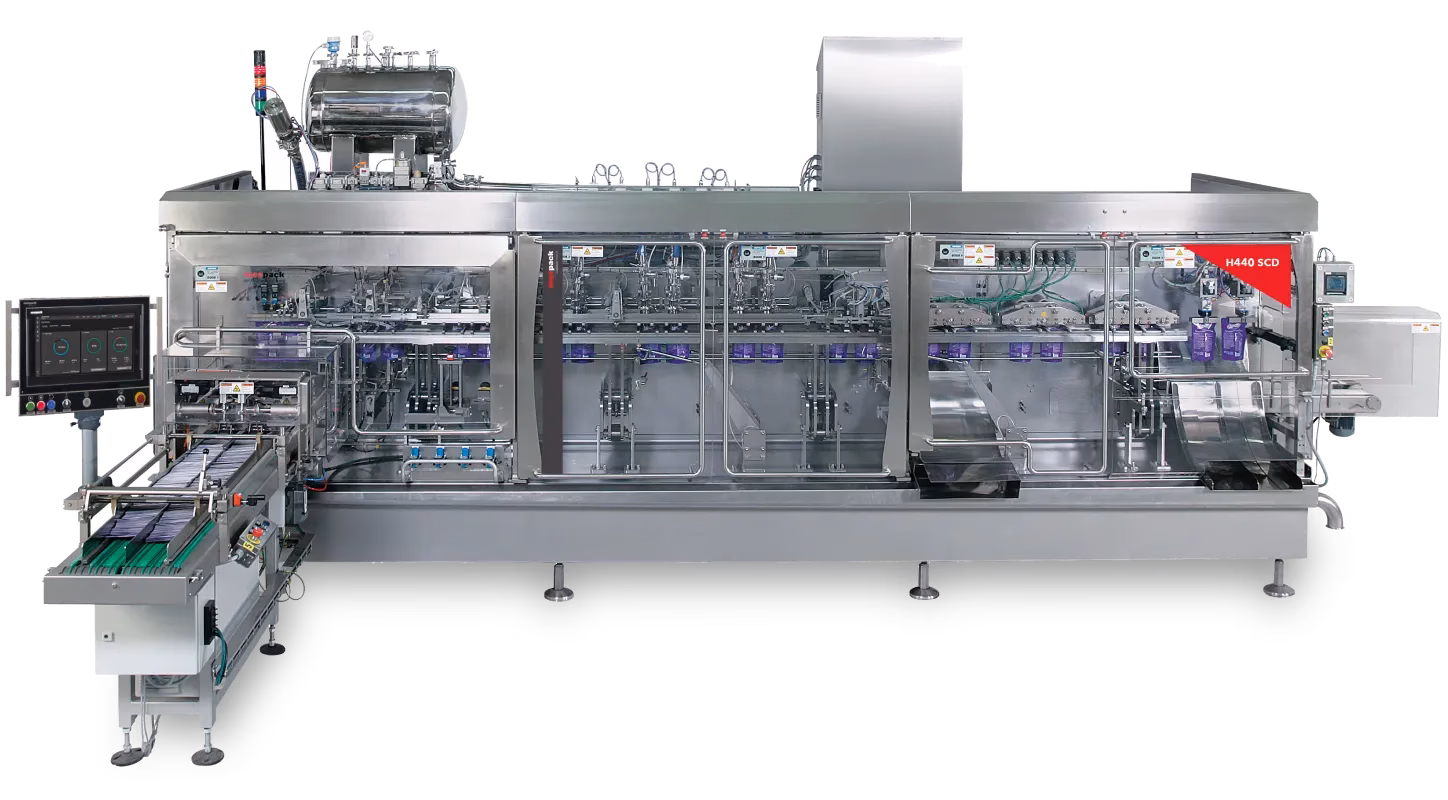

H440SC
Mespack H440SC is designed for small and medium pre-made pouches with a capacity of 2000c.c., it is formed by a pouch feeding conveyor in one or two lanes. Then a pick and place system transfer the pre-made pouches to the main module where they will be opened, filled and top sealed. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc.
H320SC
Mespack H320SC is a higHspeed solution for pre-made pouches with a maximum capacity of 3000c.c., it is formed by a pouch feeding conveyor in one or two lanes. Then a pick and place system transfer the pre-made pouches to the main module where they will be opened, filled and top sealed. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc.
H260SC
Mespack H260SC is a solution for pre-made pouches with a maximum capacity of 2500c.c., it is formed by a pouch feeding conveyor in one or two lanes. Then a pick and place system transfer the pre-made pouches to the main module where they will be opened, filled and top sealed. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc.
H180SC
Mespack H180SC is a compact solution for pre-made pouches with a maximum capacity of 1500c.c., it is formed by a pouch feeding conveyor in one or two lanes. Then a pick and place system transfer the pre-made pouches to the main module where they will be opened, filled and top sealed. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc.
