The vertical multiline solution as a result of the continuous design evolution and innovation of our packaging lines

icon-transport-ms-section

Forming section

  • Vertical sealing
  • Horizontal sealing
icon-filling
Filling station

Liquids

Solids

Granules

Powders

icon-pouch-exit-section

Exit section

  • Systems: ramp, conveyor belt or pick and place
  • Grouping and string options
icon-unwinder-section

Unwinder section

  • Servo driven unwinder
icon-reject-ms-section

Reject section

  • Individual reject available
icon-transport-ms-section

Forming section

  • Vertical sealing
  • Horizontal sealing
icon-filling
Filling station

Liquids

Solids

Granules

Powders

icon-pouch-exit-section

Exit section

  • Systems: ramp, conveyor belt or pick and place
  • Grouping and string options
icon-unwinder-section

Unwinder section

  • Servo driven unwinder
icon-reject-ms-section

Reject section

  • Individual reject available

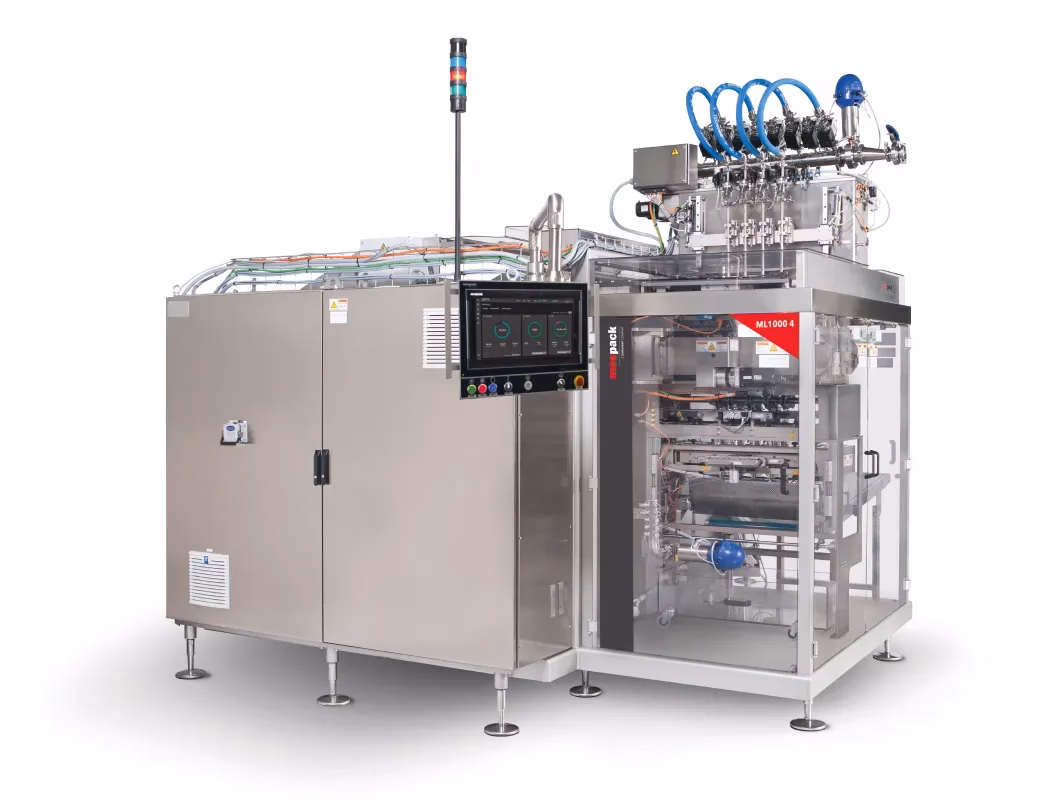

The ML-Series is offered in two different models, the ML1000 and ML1200. Both have between 4 and 14 lanes available. The ML Series is especially suited for a multitude of products, granules, powders, and liquids. It is widely used in pharmachuetical, food, as well as the home and personal care sectors. Additionally, we offer automatic downstream equipment, such as conveyors, pick and place robots, as well as cartooning facilities. The machines have the most recent motion technology with integrated PLC functions, which sequences 7 brushless motors.

Adapted to work with sustainable materials

New Controls: Mespack Athena

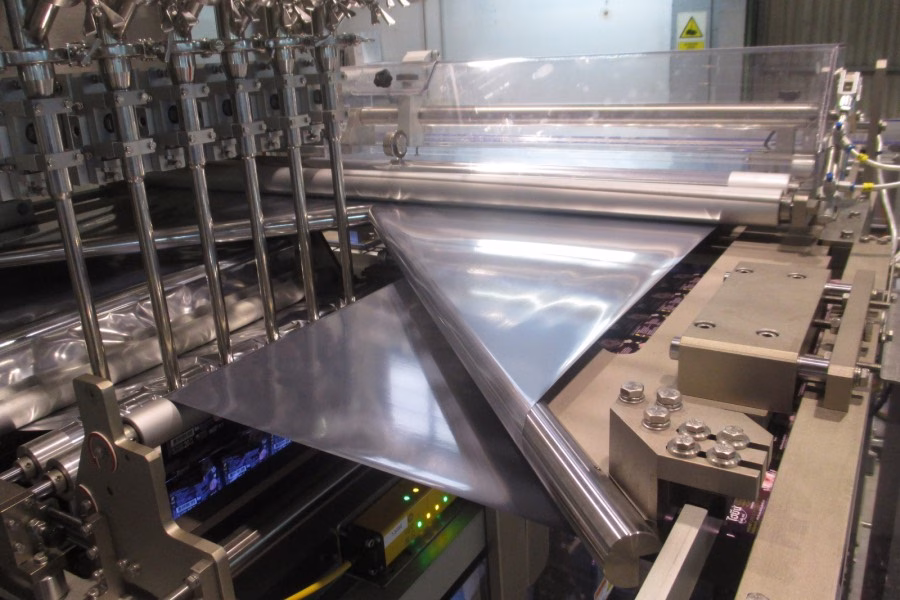

Forming Area

The forming area of our ML Series allows to make easily the format changeovers, as a result of its mobile support design. Futhermore, such the triangle position as the eyemark sensor are controlled directly by HMI

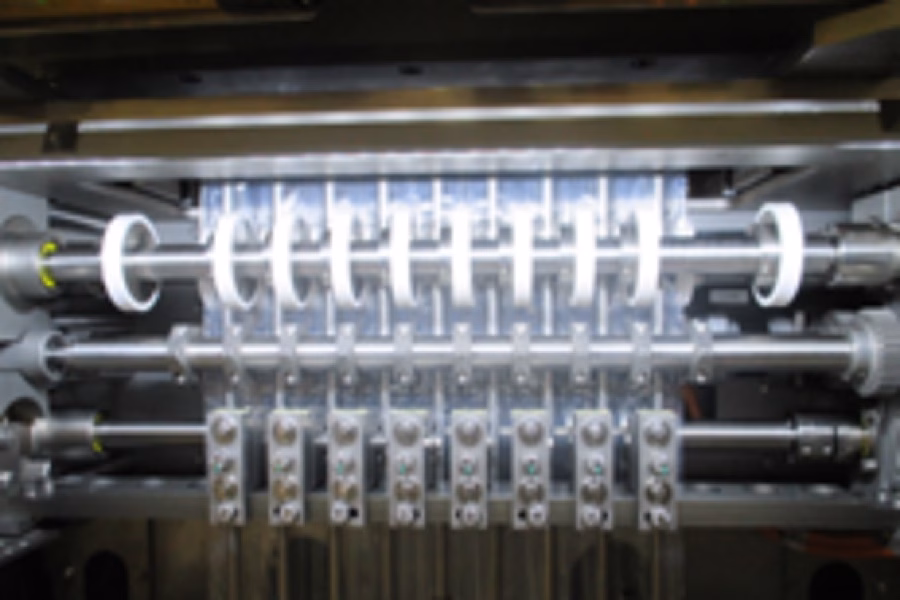

Servo Motorized Drag Unit

Servo motor is integrated into the film transport system in order to control and correct its position. This system has more operational precision, and gives you more coordinating control of the equipment’s movements.

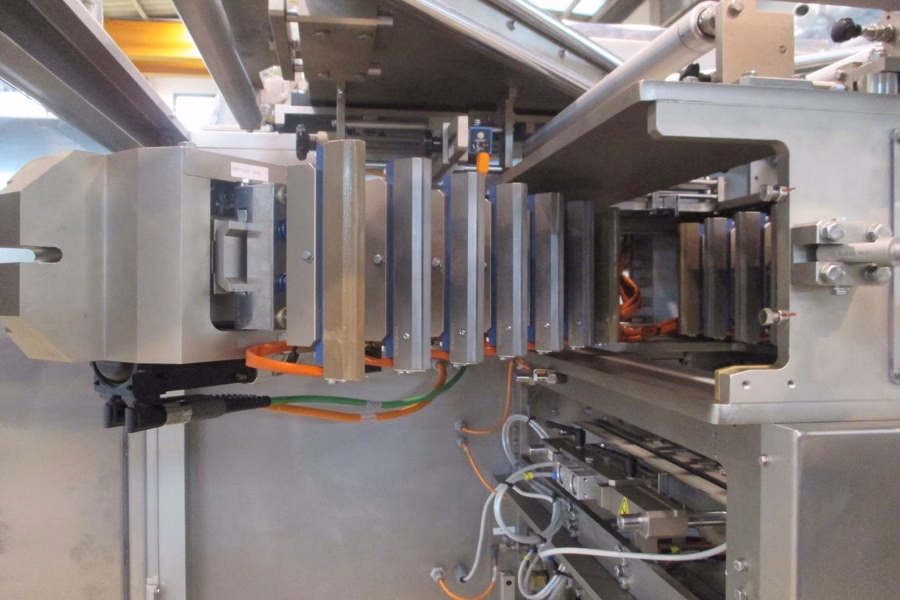

Easy Opening of Sealing Jaws

To archive a Total Productive Maintenance design, our sealing system can easily be opened to perform a cleaning operation. Moreover, all driving units are inside the frame, in order to avoid product contamination.

Main standard features

  • One brushless motor for the main film drive system and vertical cutting knives
  • Two brushless motors for unwinder
  • Two brushless motors for the vertical seal bars
  • One brushless motor for horizontal cutting knives
  • One brushless motor for horizontal seal bars
  • Mono block tubular steel frame
  • Integrated electric cabinet
  • Micro switch protected polycarbonate guardings
  • 18.5” color touch screen
  • Free access to the entire machine
  • PLC controlled temperatures in each seal bar
  • PLC controlled auto lubrication
  • Splice table in unwinder for quick reel change
  • Auger cleaning management system
  • Automatic reel edge aligner in unwinder
  • TPM features
  • CIP facilities
  • Compliance with the primary manufacturing standards
  • Laser coders and scorers (optional)
  • ATEX compliance (optional)
  • Film sterilization system (optional)
  • Laminar flow (optional)

Models
