The horizontal packaging machine for stand-up pouch H320, as well as the rest of the range, complies with the simplicity and robustness standards of Mespack design. This HFFS machine is particularly indicated to cover high speed production needs for small and medium size flat sachet and stand-up pouches.
* Some of the items listed are optionals
| Machines | H320 S | H320 D | H320 3 | H320 4 | H320 FE | H320 FED | H320 FET | H320 FEQ |
|---|---|---|---|---|---|---|---|---|
| Max. Volume (cc) | 2000 | 750 | 200 | 100 | 3000 | 1000 | 750 | 250 |
| Max. Output (p.p.m.) | 70 | 140 | 240 | 320 | 60 | 120 | 180 | 240 |
| Max. Format (mm) | 320 x 300 | 160 x 300 | 105 x 240 | 80 x 240 | 320 x 300 | 160 x 300 | 105 x 300 | 80 x 300 |
| Min. Format (mm) | 120 x 150 | 90 x 100 | 50 x 50 | 50 x 50 | 120 x 150 | 80 x 100 | 80 x 100 | 70 x 100 |
| Filling Stations | 3 | 3 | 1 | 1 | 3 | 3 | 3 | 3 |
The final speed will depend on product and film characteristics, it may change according to projects.
| Machines | H320 S | H320 D | H320 3 | H320 4 | H320 FE | H320 FED | H320 FET | H320 FEQ |
|---|---|---|---|---|---|---|---|---|
| Liquid / Pasty | ||||||||
| Pieces | ||||||||
| Powder | ||||||||
| Granules |
| Machines | H320 S | H320 D | H320 3 | H320 4 | H320 FE | H320 FED | H320 FET | H320 FEQ |
|---|---|---|---|---|---|---|---|---|
| Zipper | ||||||||
| Corner Spout | ||||||||
| Top Spout | ||||||||
| Frontal Spout | ||||||||
| Straw Applic. |
| Machines | H320 S | H320 D | H320 3 | H320 4 | H320 FE | H320 FED | H320 FET | H320 FEQ |
|---|---|---|---|---|---|---|---|---|
| Automatic Changeover | ||||||||

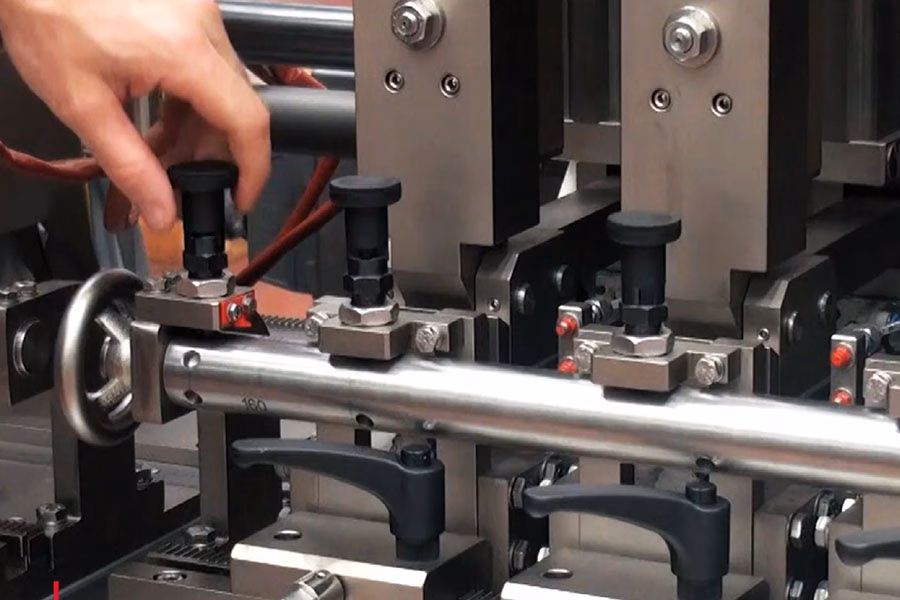

| Quick Changeover | ||||||||

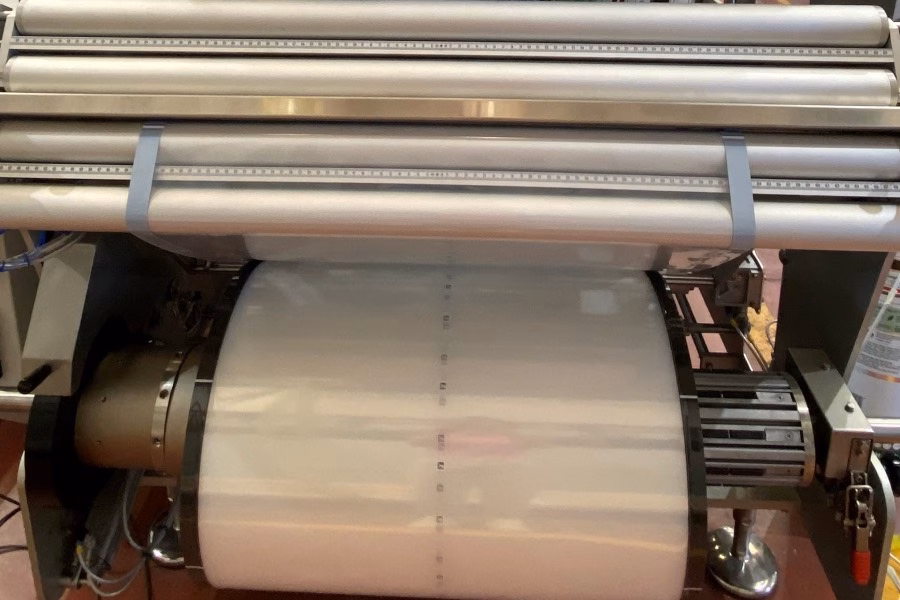

| Autosplice Unwinder |
| Machines | H320 S | H320 D | H320 3 | H320 4 | H320 FE | H320 FED | H320 FET | H320 FEQ |
|---|---|---|---|---|---|---|---|---|
| Die cut (Shaped Pouch) | ||||||||
| Tear notch | ||||||||
| Eurohole | ||||||||
| Hole Punch | ||||||||
| Double Scissors | ||||||||
| Laser cut | ||||||||
| Round edges |
| Machines | H320 S | H320 D | H320 3 | H320 4 | H320 FE | H320 FED | H320 FET | H320 FEQ |
|---|---|---|---|---|---|---|---|---|
| Laser | ||||||||
| Inkjet | ||||||||
| Thermo transfer | ||||||||
| Emboss Coder |
| Machines | H320 S | H320 D | H320 3 | H320 4 | H320 FE | H320 FED | H320 FET | H320 FEQ |
|---|---|---|---|---|---|---|---|---|
| Gas Flush | ||||||||
| Laminar flow | ||||||||
| UV Lamp | ||||||||
| Washdown |
