High flexible solution for pre-made pouches

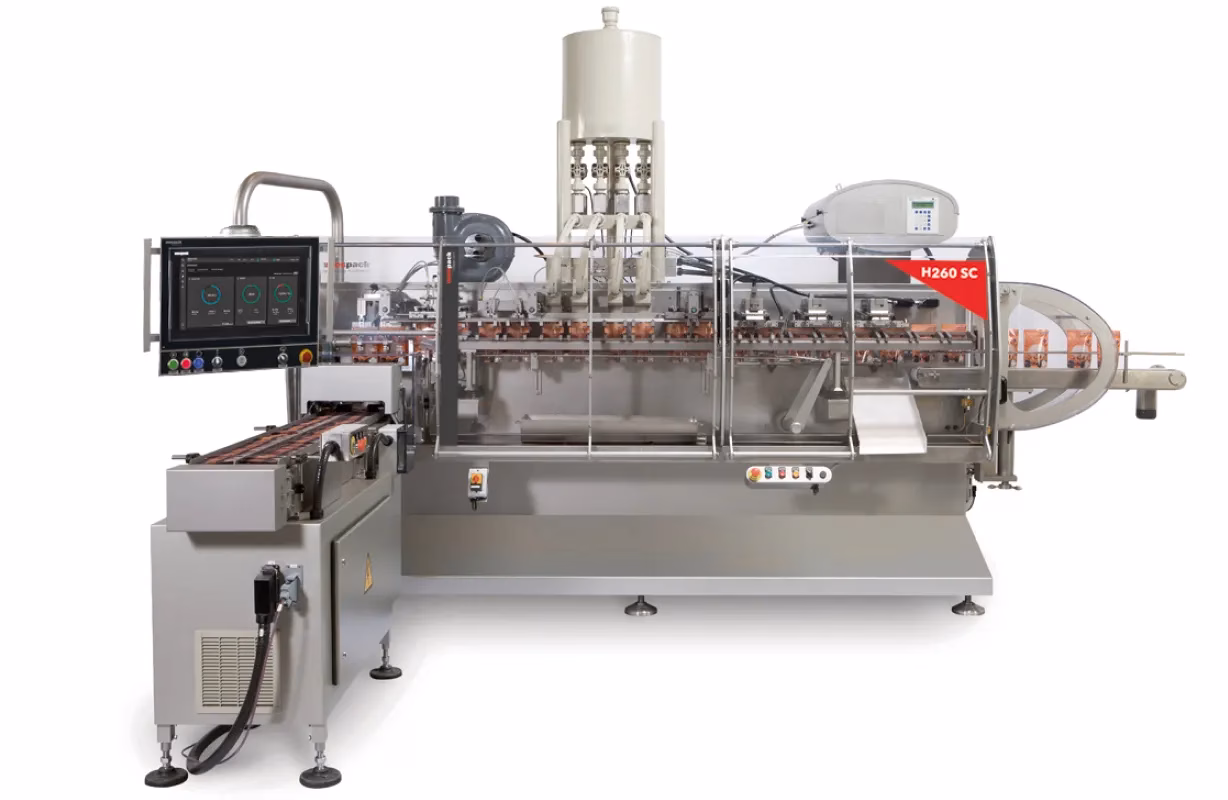

Mespack H260SC is a solution for pre-made pouches with a maximum capacity of 2500c.c., it is formed by a pouch feeding conveyor in one or two lanes. Then a pick and place system transfer the pre-made pouches to the main module where they will be opened, filled and top sealed. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc.

Packaging formats

Main standard features

  • Athena enabled (HMI and IIoT)
  • Continuous dosing system available

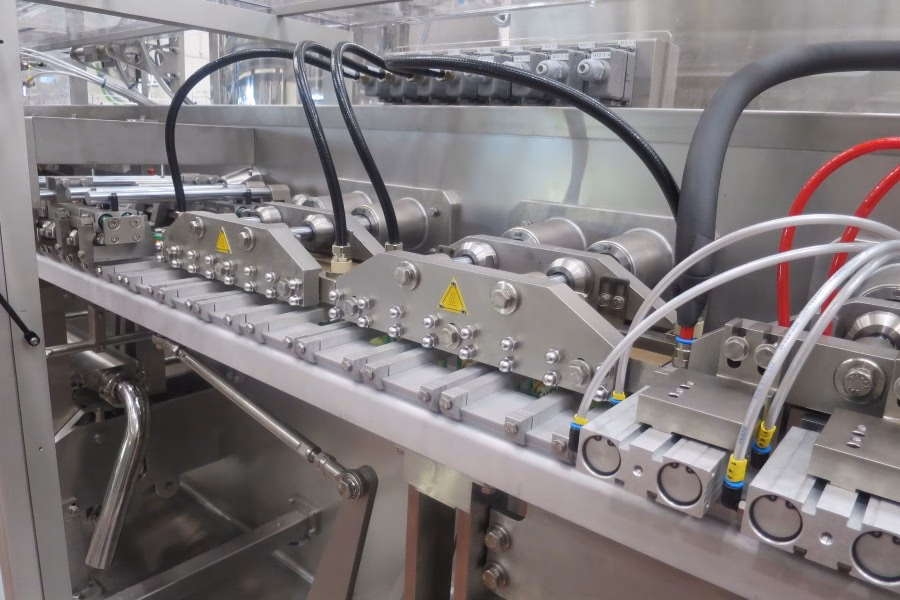

  • Independent TOP jaws pressure control

    Independent TOP jaws pressure control

    Independent TOP jaws pressure control
    Three sets of seal jaws are available for top sealing and cooling. The pressure control of the top jaws is separate for each one. Independent adjustments can be configured on the touch screen.
  • PLC automatic lubrication system.

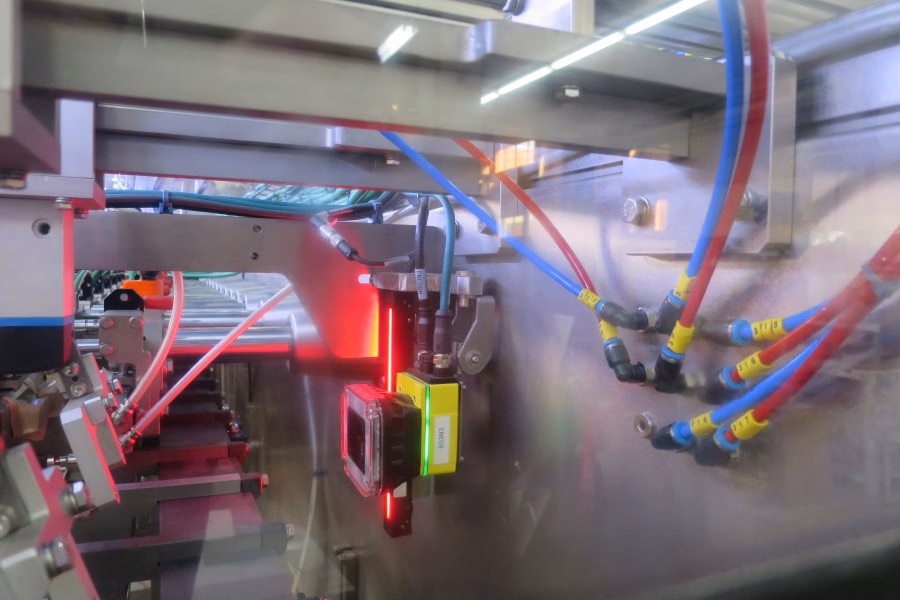

  • Pouch inspection station for vision cameras

    Pouch inspection station for vision cameras

    Pouch inspection station for vision cameras
    This station is prepared to integrate an artificial intelligent vision camera, which is capable of conducting the pouch quality inspection.
  • Pouch reject station

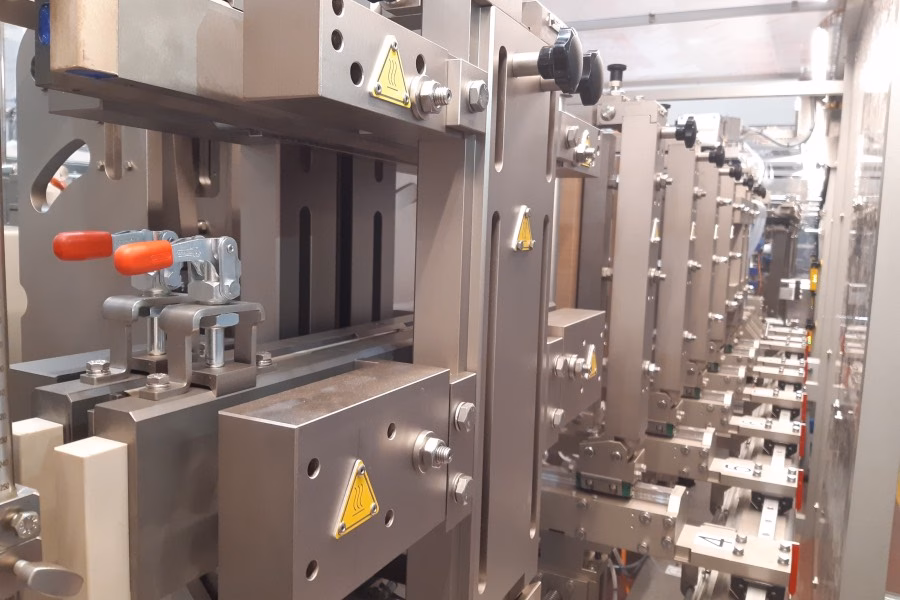

  • Quick Changeover

    Quick Changeover

    Quick Changeover
    A quick changeover reduce material waste when the format is changed. Both automatic and mechanic quick changeovers can reduce time, film waste, energy and avoid human error. It can reduce up to 20-40% in changeover time compared to manual changeover.
  • Recyclable ready films
  • Static pouch stretching prior to top sealing

* Some of the items listed are optionals

Technical specifications

MachinesH260 SCH260 SCD
Max. Volume (cc)2500800
Max. Output (p.p.m.)50100
Max. Format (mm)260 x 300130 x 300
Min. Format (mm)80 x 12080 x 120
Filling Stations33

The final speed will depend on product and film characteristics, it may change according to projects.

A wide range of dosing systems for all types of products on the market. More information
MachinesH260 SCH260 SCD
Liquid / Pasty
Perfect close systems for your flexible pouches. More information
MachinesH260 SCH260 SCD
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesH260 SCH260 SCD
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesH260 SCH260 SCD
Die cut (Shaped Pouch)
Tear notch
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesH260 SCH260 SCD
Thermo transfer
Emboss Coder
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesH260 SCH260 SCD
Gas Flush
Laminar flow
UV Lamp

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging


An edge computer, placed in the machine cabinet, is responsible for collecting and sending data to the cloud through an internet connection to be stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the machine’s data, belonging to the same customer, can be consolidated in a unique Mespack Athena dashboard view.

Main Features

  • Data collection
  • Dashboards
  • On-Machine control warning system
  • Multi-device
  • Multi-machine
  • Plant overview
  • Machine comparison
  • SMS/e-Mail
  • Data Available everywhere at anytime
  • Software updates
  • Identifies trends to avoid unexpected issues
  • Reduction of TCO
  • Better understanding of machine performance
  • Analyzes data in detail to increase production KPIs
  • Decreases maintenance costs due to preventive maintenance
