Home » Models » HF

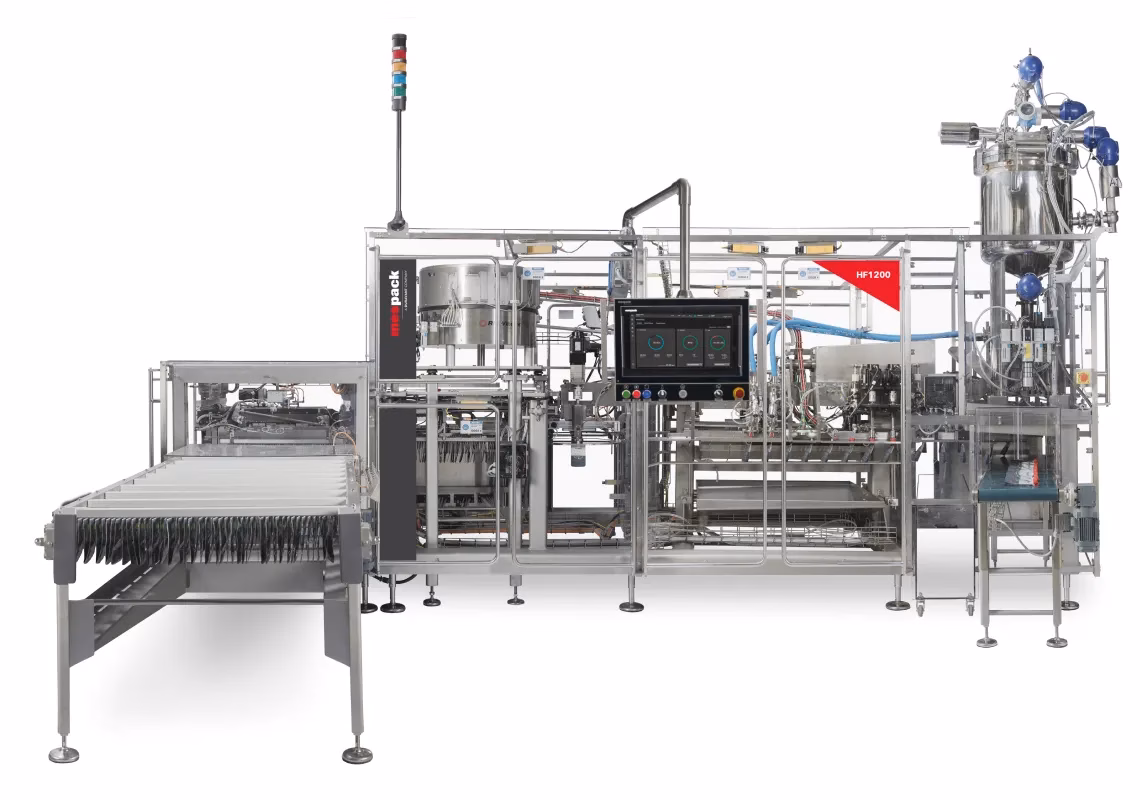

HF

High versatility filling through spout solution able to reduce up to 15% of headspace

The new HF series works with top and edge spouted pre-made pouches. Thanks to continuous motion filling through the spout, the head space is reduced which allows 15% less film by preventing the wave effect.
This model is specially thought-out and designed to guarantee the greatest versatility. Thanks to its modular design, the HF series allows the addition of a pouch forming module to replace the automatic rail loading system. It stands out for being able to increase output capacity by adapting the machine to new additional lanes up to 4 lanes with HF4800. But the flexibility of the HF does not end there, it can also work with different products and formats simultaneously.

Packaging formats

Main standard features

  • Additional station for laser or inkjet encoders
  • Athena enabled (HMI and IIoT)
  • Continuous dosing system available
  • Filling through spout
  • PLC automatic lubrication system.
  • Possibility of adding HFS (Horizontal form and Seal) module
  • Pouch Inspection Station

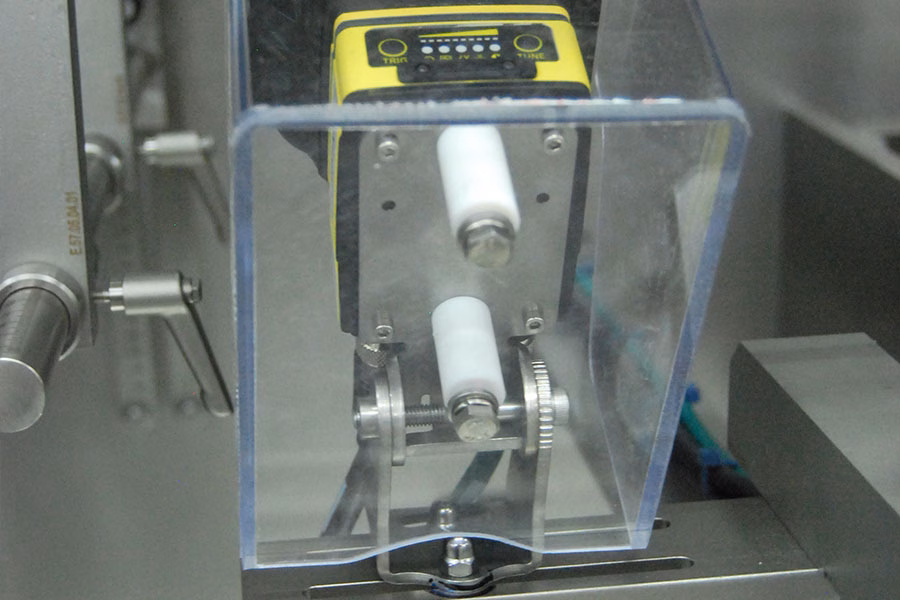

    Pouch Inspection Station

    Pouch Inspection Station
    This station is prepared to integrate an artificial intelligent vision camera, which is capable of conducting the pouch quality inspection.
  • Pouch reject station
  • Recyclable ready films
  • Spout cleaning prior to capping
  • Star system for pouch transportation

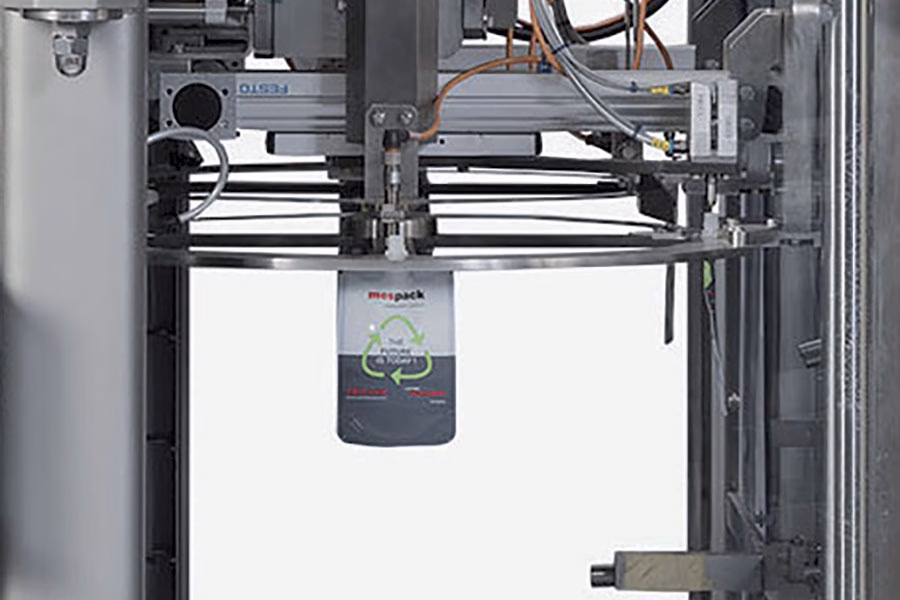

    Star system for pouch transportation

    Star system for pouch transportation
    The start system does not only operate as a transport system supply, but it is also used for code printing and the pouch visual inspection with in-place pouch rejection.

* Some of the items listed are optionals

Technical specifications

MachinesHF1200HF2400HF4800
Max. Volume (cc)100010001000
Max. Output (p.p.m.)80160260
Max. Format (mm)160 x 300160 x 300160 x 300
Min. Format (mm)70 x 10070 x 10070 x 100
Filling Stations---

The final speed will depend on product and film characteristics, it may change according to projects.

A wide range of dosing systems for all types of products on the market. More information
MachinesHF1200HF2400HF4800
Liquid / Pasty
Pieces
Powder
Granules
Perfect close systems for your flexible pouches. More information
MachinesHF1200HF2400HF4800
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesHF1200HF2400HF4800
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesHF1200HF2400HF4800
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesHF1200HF2400HF4800
Laser
Inkjet
Thermo transfer
Emboss Coder
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesHF1200HF2400HF4800
Gas Flush
Laminar flow
UV Lamp
Washdown

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging

On-Cloud

An edge computer, located in the machine cabinet, is responsible for collecting and sending data to the Cloud through a secure and encrypted internet connection that is stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the customer can consolidate and view its machine data on a unique Mespack Athena dashboard.

Features

  • Data Collection
  • Dashboards
  • Alarm Video-Solution (in HMI)
  • Preventive Maintenance System
  • Embeded Documentation
  • Multi-Device
  • Advance Notification System
  • Multi-Machine
  • Plant Overview
  • Machine Comparison
  • Software Updates
