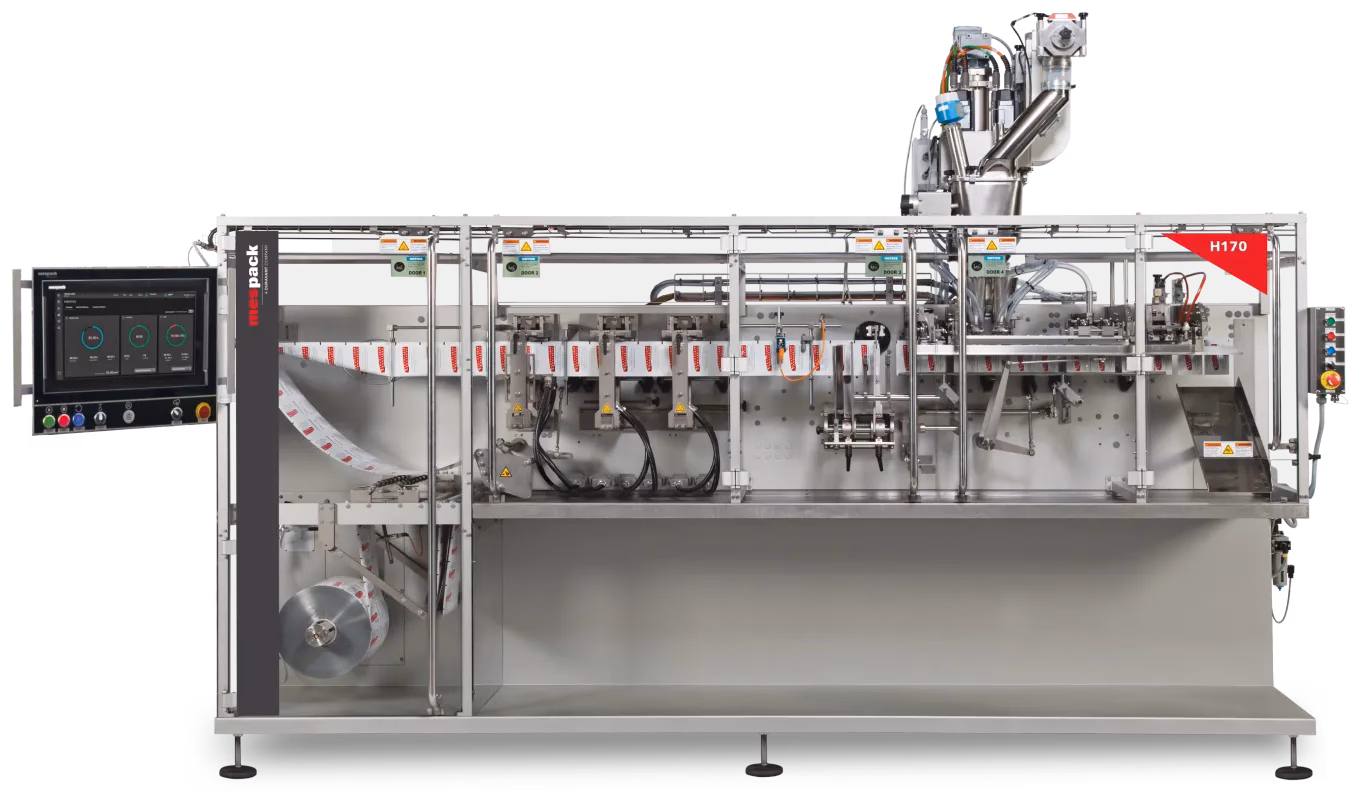

H170

High performance in a compact design

The high-speed flat sachet equipment has been developed to complete the competitive range of HFFS machines.
This model is more compact and user friendly as all electric controls are integrated within the machine frame.
To ensure a high packaging capacity, up to 2 filling stations option is available with this solution. The H170 keeps the rugged construction which is characteristic in the Mespack program. It is a compact high-speed equipment for around the clock operation with minimum maintenance and the floorspace needed is limited.

Packaging formats

Main standard features

  • Athena enabled (HMI and IIoT)
  • Electrical cabinet integrated to machine
  • PLC automatic lubrication system.
  • Pouch reject station
  • Recyclable ready films
  • Static pouch stretching prior to top sealing

* Some of the items listed are optionals

Technical specifications

MachinesH170 SH170 D
Max. Volume (cc)600125
Max. Output (p.p.m.)100200
Max. Format (mm)170 x 20085 x 200
Min. Format (mm)60 x 6050 x 60
Filling Stations22

The final speed will depend on product and film characteristics, it may change according to projects.

A wide range of dosing systems for all types of products on the market. More information
MachinesH170 SH170 D
Liquid / Pasty
Pieces
Powder
Granules
Perfect close systems for your flexible pouches. More information
MachinesH170 SH170 D
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesH170 SH170 D
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesH170 SH170 D
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesH170 SH170 D
Laser
Inkjet
Thermo transfer
Emboss Coder
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesH170 SH170 D
Gas Flush
Laminar flow
UV Lamp
Washdown

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging

On-Cloud

An edge computer, located in the machine cabinet, is responsible for collecting and sending data to the Cloud through a secure and encrypted internet connection that is stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the customer can consolidate and view its machine data on a unique Mespack Athena dashboard.

Features

  • Data Collection
  • Dashboards
  • Alarm Video-Solution (in HMI)
  • Preventive Maintenance System
  • Embeded Documentation
  • Multi-Device
  • Advance Notification System
  • Multi-Machine
  • Plant Overview
  • Machine Comparison
  • Software Updates
