H150

Compact solution with filling capacity up to 900 c.c.

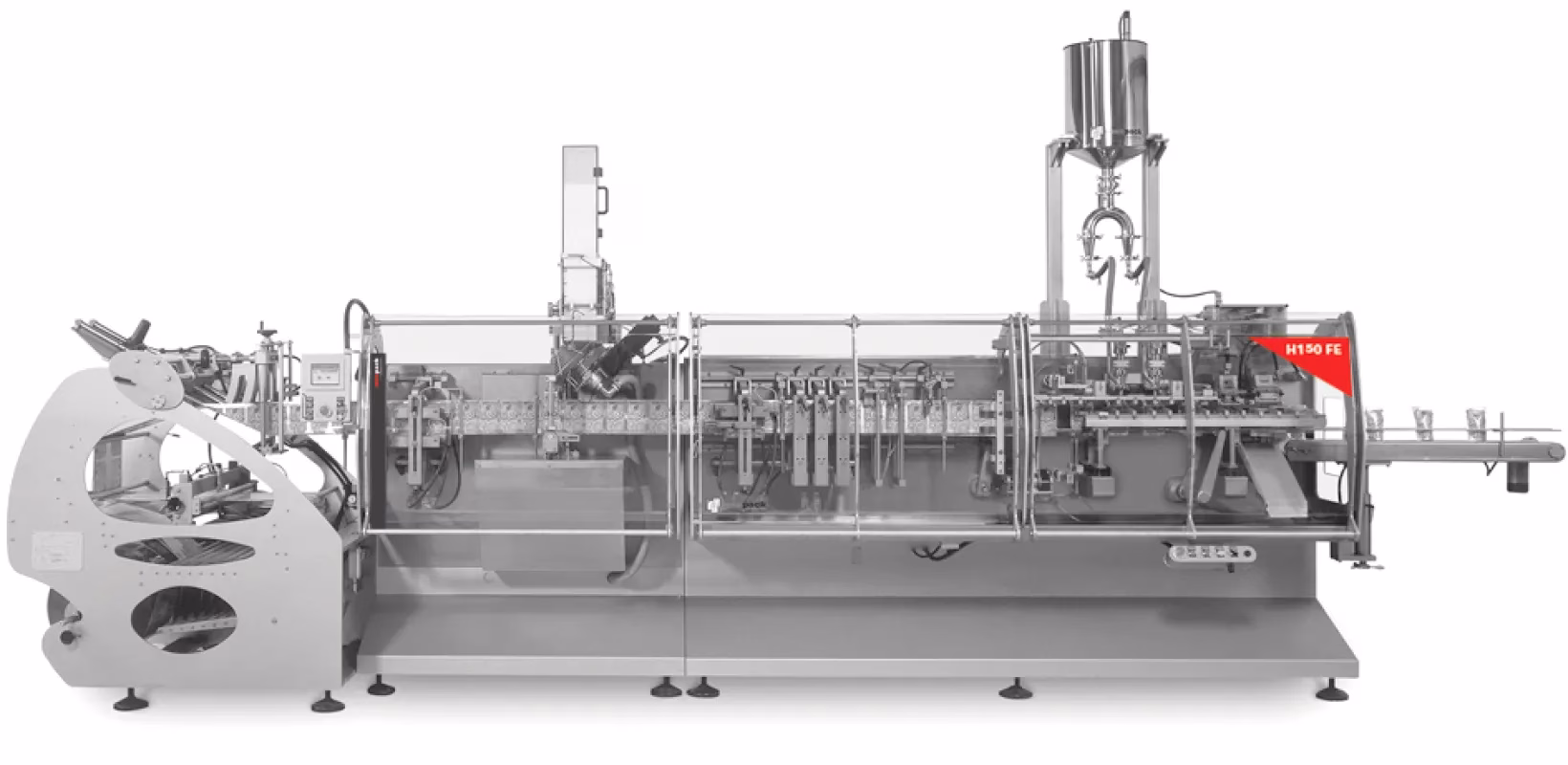

Mespack H150 has been designed following company standards of simplicity and robustness. It is a HFFS machine designed to produce medium sized flat sachet pouches.
Being able to produce up to 900 c.c. pouches, this equipment is indicated for frozen foods, prepared foods, sauces & condiments, in powder or liquid, beverages, dried fruits, snacks, confectionaries, dry mixes, etc.
Thanks to its versatility, it is very simple and fast to install multiple accessories and applications on demand to meet any specific packaging need.

Packaging formats

Main standard features

Athena enabled (HMI and IIoT)

Automatic adjustment seal jaws position
Automatic adjustment seal jaws position
The automatic quick changeover is controlled by servo and can easily be performed by HMI. Furthermore, it avoids operator errors during the changeover process.

Automatic bottom perforator correction system for stand-up pouches

Autosplice unwinder
Autosplice unwinder
The automatic reel splicing system is designed to eliminate roll change downtime. It allows you to change running web rolls without stopping production.

Maximum of 4 filling stations to increase solution flexibility

PLC automatic lubrication system.

Pouch reject station

Quick Changeover
Quick Changeover
A quick changeover reduce material waste when the format is altered. The preparation of a pouch format change requires not only time, but also film and energy consumption. Both automatic and mechanic quick changeovers will reduce time, film, and energy. It is a tool-free and user-friendly operation.

Recyclable ready films

Static pouch stretching prior to top sealing

* Some of the items listed are optionals

Technical specifications

Machines	H150 S	H150 D	H150 FE
Max. Volume (cc)	450	150	900
Max. Output (p.p.m.)	80	160	65
Max. Format (mm)	160 x 300	75 x 300	160 x 300
Min. Format (mm)	60 x 80	50 x 100	80 x 100
Filling Stations	4	4	4

The final speed will depend on product and film characteristics, it may change according to projects.

Dosifying products

A wide range of dosing systems for all types of products on the market. More information

Machines	H150 S	H150 D	H150 FE
Liquid / Pasty
Pieces
Powder
Granules

Closing pouch systems

Perfect close systems for your flexible pouches. More information

Machines	H150 S	H150 D	H150 FE
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.

Automations and User Friendly

Let automation to enhance your machine downtime. More information

Machines	H150 S	H150 D	H150 FE
Automatic Changeover
Quick Changeover
Autosplice Unwinder

Die-cut solutions

Find your perfect fit for all your designs. More information

Machines	H150 S	H150 D	H150 FE
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges

Coding System

One coding system for each project. More information

Machines	H150 S	H150 D	H150 FE
Laser
Inkjet
Thermo transfer
Emboss Coder

Hygienic Solutions

Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information

Machines	H150 S	H150 D	H150 FE
Gas Flush
Laminar flow
UV Lamp
Washdown
