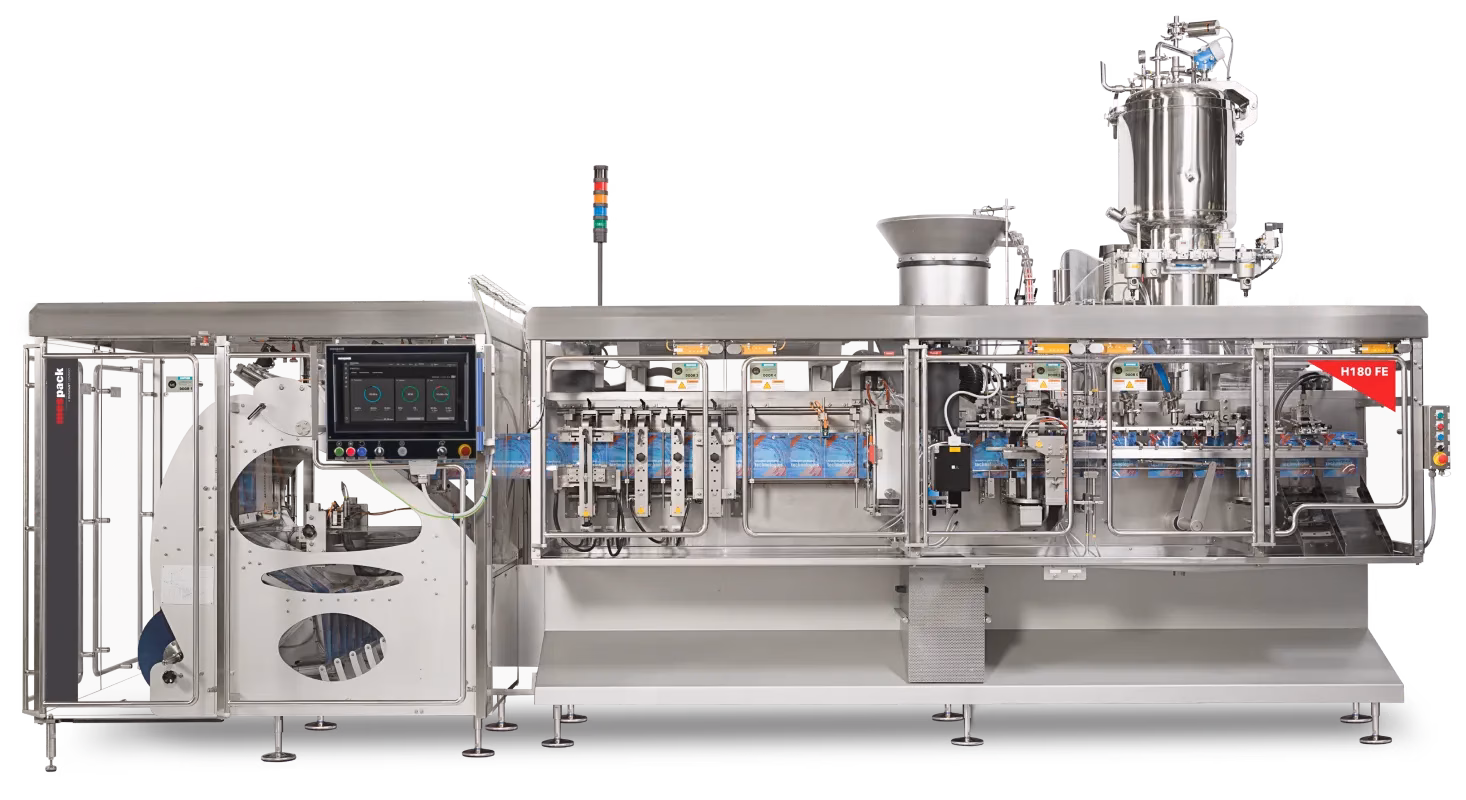

H180

The most versatile and compact solution with the latest technology incorporated

Complying with the simplicity and robustness standards of Mespack design, H180 is destined to produce medium size flat and stand-up pouches with different options of applicators. It is a flexible machine, since the same machine can be used to meet different customer needs, always with maximum efficiency.
Producing up to 1.500 c.c. pouches, this machine is indicated for frozen foods, prepared foods, sauces & condiments, powders or liquids, beverages, dried fruits, snacks, confectionaries, dry mixes, and more.

Packaging formats

Main standard features

  • Athena enabled (HMI and IIoT)
  • Automatic adjustment seal jaws position

    Automatic adjustment seal jaws position

    Automatic adjustment seal jaws position
    The automatic quick changeover is controlled by servo and can easily be performed by HMI. Furthermore, it avoids operator errors during the changeover process.
  • Automatic bottom perforator correction system for stand-up pouches
  • Autosplice unwinder

    Autosplice unwinder

    Autosplice unwinder
    The automatic reel splicing system is designed to eliminate roll change downtime. It allows you to change running web rolls without stopping production.
  • Full servo version available
  • Maximum of 4 filling stations to increase solution flexibility
  • PLC automatic lubrication system.
  • Pouch reject station
  • Quick Changeover

    Quick Changeover

    Quick Changeover
    A quick changeover reduce material waste when the format is altered. The preparation of a pouch format change requires not only time, but also film and energy consumption. Both automatic and mechanic quick changeovers will reduce time, film, and energy. It is a tool-free and user-friendly operation.
  • Recyclable ready films
  • Static pouch stretching prior to top sealing

* Some of the items listed are optionals

Technical specifications

MachinesH180 SH180 DH180 FE
Max. Volume (cc)10002001500
Max. Output (p.p.m.)8016065
Max. Format (mm)190 x 30090 x 300190 x 300
Min. Format (mm)70 x 10060 x 10070 x 100
Filling Stations444

The final speed will depend on product and film characteristics, it may change according to projects.

A wide range of dosing systems for all types of products on the market. More information
MachinesH180 SH180 DH180 FE
Liquid / Pasty
Pieces
Powder
Granules
Perfect close systems for your flexible pouches. More information
MachinesH180 SH180 DH180 FE
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesH180 SH180 DH180 FE
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesH180 SH180 DH180 FE
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesH180 SH180 DH180 FE
Laser
Inkjet
Thermo transfer
Emboss Coder
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesH180 SH180 DH180 FE
Gas Flush
Laminar flow
UV Lamp
Washdown

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging

On-Cloud

An edge computer, located in the machine cabinet, is responsible for collecting and sending data to the Cloud through a secure and encrypted internet connection that is stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the customer can consolidate and view its machine data on a unique Mespack Athena dashboard.

Features

  • Data Collection
  • Dashboards
  • Alarm Video-Solution (in HMI)
  • Preventive Maintenance System
  • Embeded Documentation
  • Multi-Device
  • Advance Notification System
  • Multi-Machine
  • Plant Overview
  • Machine Comparison
  • Software Updates
