HYDROFORMA 660 DS

The world’s leading water-soluble pods packaging solution with a reduced footprint and a quick changeover time

HYDROFORMA 660 FB

Mespack Hydroforma 660 DS is a low footprint, high-speed, and the fastest changeover time water-soluble machine. It is capable to produce up to 1400 ppm for liquid products and 2400 ppm for powder products. This equipment is the most efficient water soluble pod solution worldwide, in which you can produce more pods, in less time and waste.

Packaging formats

Main standard features

  • Accurate pre-measured doses
  • Autosplicer for hydroforma rotary machine

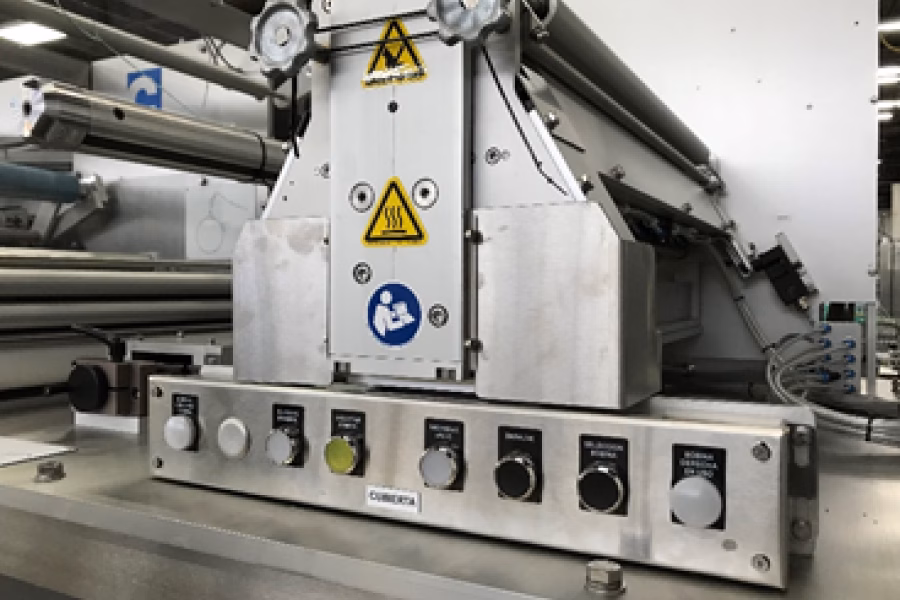

    Autosplicer for hydroforma rotary machine

    Autosplicer for hydroforma rotary machine
    Our autosplicer system for the water soluble pods rotary equipments allows you to make a reel quick changeover wihout downtime.
  • Computer backed
  • End-user convenience
  • Enhancement user safety feature
  • Full servo version

    Full servo version

    The Hydroforma can simultaneously load powders and/or liquids. The high precision, servo-driven product management features give an accurate assurance of your desired product amount.
  • Packaging shipping costs reduced due to centralization
  • Patented gentle handling protects pouches

    Patented gentle handling protects pouches

    Patented gentle handling protects pouches
    The Hydroforma Series maintains careful pouch control during and after the cutting process, preventing damage at every stage.
  • Pouch detector system minimizes clean-ups

    Pouch detector system minimizes clean-ups

    Pouch detector system minimizes clean-ups
    Our unique pouch detector vision system monitors proper film formation in drum cavities. If film is not detected, no fill takes place. This feature saves you valuable time, by preventing unnecessary clean-ups.
  • Precision filling system for liquids or powders

    Precision filling system for liquids or powders

    Precision filling system for liquids or powders
    The Hydroforma can simultaneously load powders and/or liquids. The high precision, servo driven product management features give an accurate assurance of your desired product amount.
  • Purging trough speed changeovers

    Purging trough speed changeovers

    Purging trough speed changeovers
    Eliminating the wasting valuable film. Quick change-over purges old product and primes those that are new.
  • Reduction of dust and vapor inhalation due to chemichal free contact

* Some of the items listed are optionals

Technical specifications

MachinesHYDROFORMA 660 DS
Max. Volume (cc)50
Max. Output (p.p.m.)2400
Max. Format (mm)152.4 x 152.4
Min. Format (mm)12.7 x 6.35

The final speed will depend on product and film characteristics, it may change according to projects.

Dosifying products

A wide range of dosing systems for all types of products on the market. More information

MachinesHYDROFORMA 660 DS
Liquid / Pasty
Pieces
Powder
Granules




Feed Systems

MACHINES HYDROFORMA 660 DS
Servo Pump (Liquid)
Pneumatic Pump (Liquid)
Auger (Powder)
Feed Belt (Powder)
Combination Units (Powder & Liquid)

Pod Design Capability

MACHINES HYDROFORMA 660 DS
Monodose (Single Chamber)
Dual Chamber
Triple Chamber
5 Chamber Designs
Powder & Liquid Combinations
Dual Shot Nozzle

Control platforms

MACHINES HYDROFORMA 660 DS
Allen Bradley
Siemens (SIMOTION)

Product Development

MACHINES HYDROFORMA 660 DS
Pod Design
Static Testing (Hand Samples)
Dynamic Testing (Speed Testing)
Pod Regulatory Compliance

Efficient Design

MACHINES HYDROFORMA 660 DS
Liquid Purge Tank
Sliding Nozzle Bar
E-Z Depth Drum Adjustments
Autosplicing

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging

HYDROFORMA 660 FB

On-Cloud

An edge computer, located in the machine cabinet, is responsible for collecting and sending data to the Cloud through a secure and encrypted internet connection that is stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the customer can consolidate and view its machine data on a unique Mespack Athena dashboard.

Features

  • Data Collection
  • Dashboards
  • Alarm Video-Solution (in HMI)
  • Preventive Maintenance System
  • Embeded Documentation
  • Multi-Device
  • Advance Notification System
  • Multi-Machine
  • Plant Overview
  • Machine Comparison
  • Software Updates
