HYDROFORMA 660 FB

The Hydroforma 660 FB is the most advanced and reduced-footprint water-soluble pod packaging solution for high production requirements

HYDROFORMA 660 FB

The Hydroforma 660 FB machine has been created by combining the know-how of the HFFS machines and the technology of the water-soluble film machines. It has a flexible and compact design, which was developed to guarantee high production speed. The Hydroforma 660 FB has the capacity to produce between 7 and 20 lines of pods, the largest pod  capacity is 90 mm wide. Depending on the design, the machine can reach speeds of up to 2000 PPM (Pods Per Minute), this is 122% faster than Hydroforma 660 rotary machines in liquid dosing.

Packaging formats

Main standard features

  • Accurate pre-measured doses
  • Autosplicer

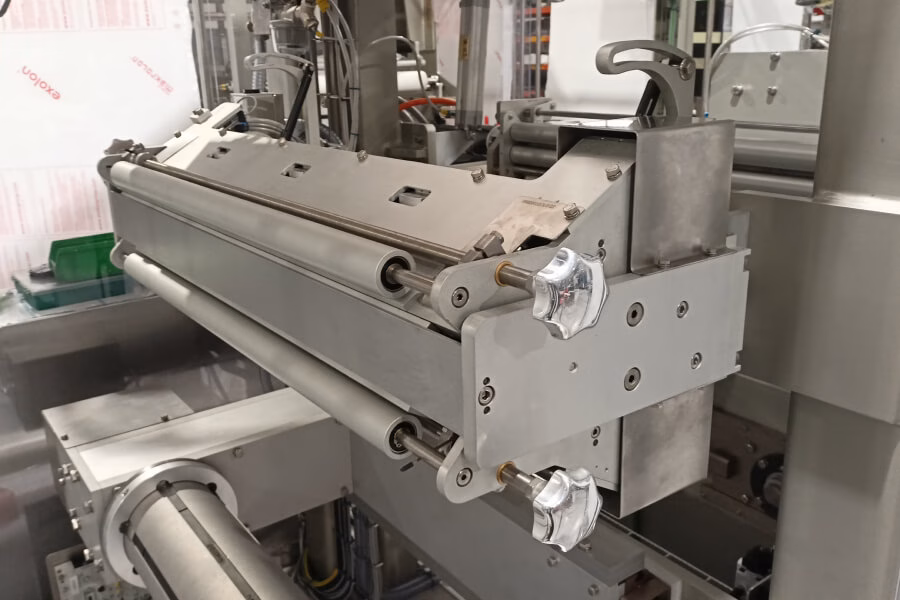

    Autosplicer

    Autosplicer
    Our autosplicer system for Hydroforma 660 FB machine, allows you to make a reel quick changeover wihout downtime.
  • Cavity Detector System

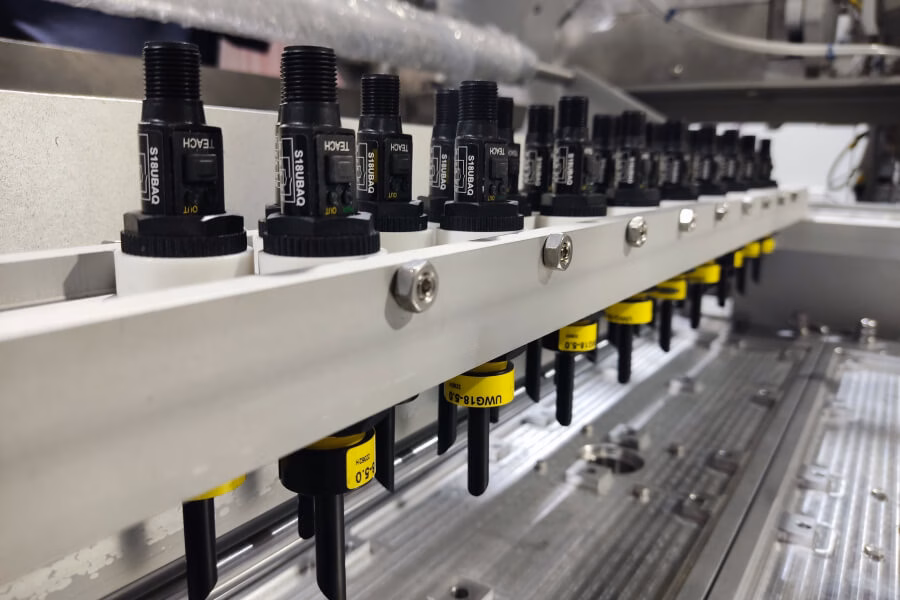

    Cavity Detector System

    Cavity Detector System
    Our unique cavity detector with an ultrasonic system monitors proper film formation in cavities. Hence, if the film is not detected, the performance of fill does not take place. This feature saves you valuable time, by preventing unnecessary clean-ups.
  • Computer backed
  • Enhancement user safety feature
  • Full servo version

    Full servo version

    The Hydroforma can simultaneously load powders and/or liquids. The high precision, servo-driven product management features give an accurate assurance of your desired product amount.
  • Pod Slitting Blades

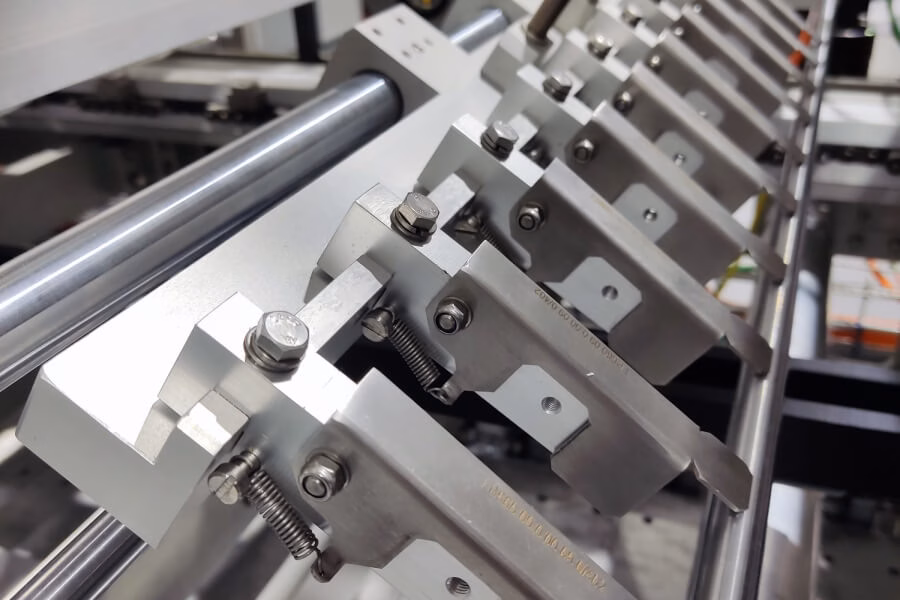

    Pod Slitting Blades

    Pod Slitting Blades
    The blades are pneumatically operated. Furthermore, they allow for quick and easy assemblies to maximize handling safety.
  • Precision Filling System for Liquids or Powder

    Precision Filling System for Liquids or Powder

    Precision Filling System for Liquids or Powder
    The Hydroforma can simultaneously load powders and/or liquids. The high precision, servo-driven product management features give an accurate assurance of your desired product amount
  • Preheated Blade Group

    Preheated Blade Group

    Preheated Blade Group
    It is a servo-driven unit with blades that move up and down. This makes them a safe cutting system and facilitates the separation of the strings into individual pods.
  • Transfer to Conveyor Belt

    Transfer to Conveyor Belt

    Transfer to Conveyor Belt
    The pods are transferred to a conveyor belt by individually controlled vacuum suction cups. The film trimmings waste is removed by a suction system that is located on both sides of the conveyor belt.

* Some of the items listed are optionals

Technical specifications

MachinesHYDROFORMA 660 FB
Max. Volume (cc)50
Max. Output (p.p.m.)2000
Max. Format (mm)90 x 90
Min. Format (mm)12.7 x 6.35

The final speed will depend on product and film characteristics, it may change according to projects.

Dosifying products

A wide range of dosing systems for all types of products on the market. More information

MachinesHYDROFORMA 660 FB
Liquid / Pasty
Pieces
Powder
Granules




Feed Systems

MACHINES HYDROFORMA 660 FB
Servo Pump (Liquid)
Pneumatic Pump (Liquid)
Volumetric (Powder)
Combination Units (Powder & Liquid)

Pod Design Capability

MACHINES HYDROFORMA 660 FB
Monodose (Single Chamber)
Dual Chamber
Triple Chamber
5 Chamber Designs
Powder & Liquid Combinations

Control platforms

MACHINES HYDROFORMA 660 FB
Allen Bradley
Omron
Siemens (SIMOTION)

Efficient Design

MACHINES HYDROFORMA 660 FB
Liquid Purge Tank
Sliding Nozzle Bar
Autosplicing

Request information

Find out Mespack’s Corporate Catalog!

Learn about the largest product portfolio of the industry for innovative packaging

HYDROFORMA 660 FB

On-Cloud

An edge computer, located in the machine cabinet, is responsible for collecting and sending data to the Cloud through a secure and encrypted internet connection that is stored and analyzed by Mespack Athena. All the data can be viewed from multiple devices. Worldwide, the customer can consolidate and view its machine data on a unique Mespack Athena dashboard.

Features

  • Data Collection
  • Dashboards
  • Alarm Video-Solution (in HMI)
  • Preventive Maintenance System
  • Embeded Documentation
  • Multi-Device
  • Advance Notification System
  • Multi-Machine
  • Plant Overview
  • Machine Comparison
  • Software Updates
