Mespack H640 4-up solution for form-fill-seal pouches with a maximum width of 160mm; output of 220 flat pouches per minute. This machine is specially designed for the food industry. It is best suited for a variety of product types, such as liquids, powders, solids, and pieces. Different applicators and options can be integrated into this machine, including tear notches, hole punches, round edges, euro holes, etc.
The high-production 4-Up equipment for big pouches up to 160mm pouch width and 220 pouches per minute
Packaging formats
Main standard features
- Additional film compensator rollers
Additional film compensator rollers
A special compensator unit is designed to transform the continuous unwinder motion film into a smooth forming module intermittent motion. This group is responsible for setting the appropriate tension and film alignment, while acting, at the same time, as a film lung. - Athena enabled (HMI and IIoT)
- Automatic adjustment seal jaws position
Automatic adjustment seal jaws position
The automatic quick changeover is controlled by servo and can easily be performed by HMI. Furthermore, it avoids operator errors during the changeover process. - Automatic bottom perforator correction system for stand-up pouches
- Autosplice Unwinder

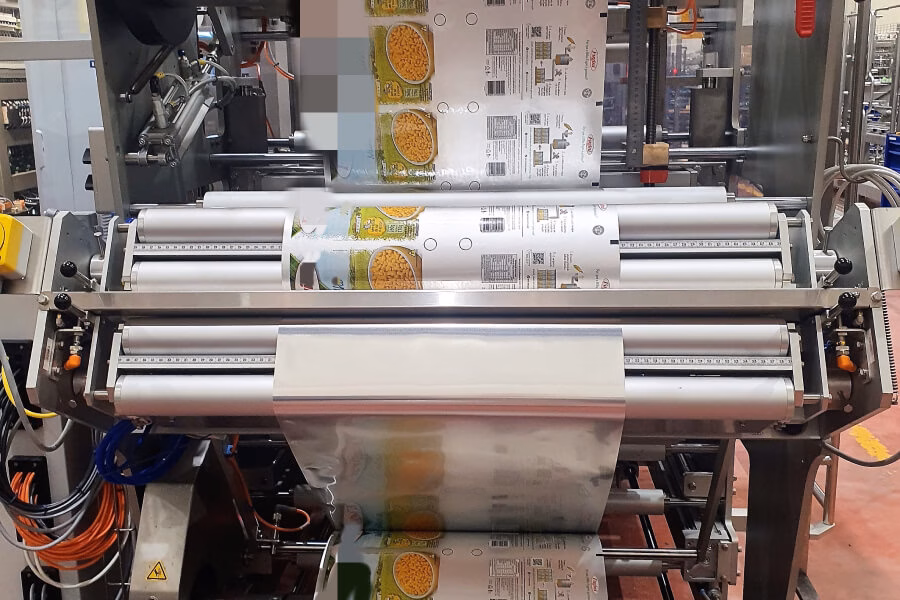

Autosplice Unwinder
The automatic reel splicing system is designed to eliminate roll change downtime. It allows you to save up to 5 to 10 minutes each 2 hours of production. - Full servo version available
- PLC automatic lubrication system.
- Quick Changeover
Quick Changeover
A quick changeover reduce material waste when the format is changed. Both automatic and mechanic quick changeovers can reduce time, film waste, energy and avoid human error. It can reduce up to 20-40% in changeover time compared to manual changeover. - Special Gripper for Heavy Pouch

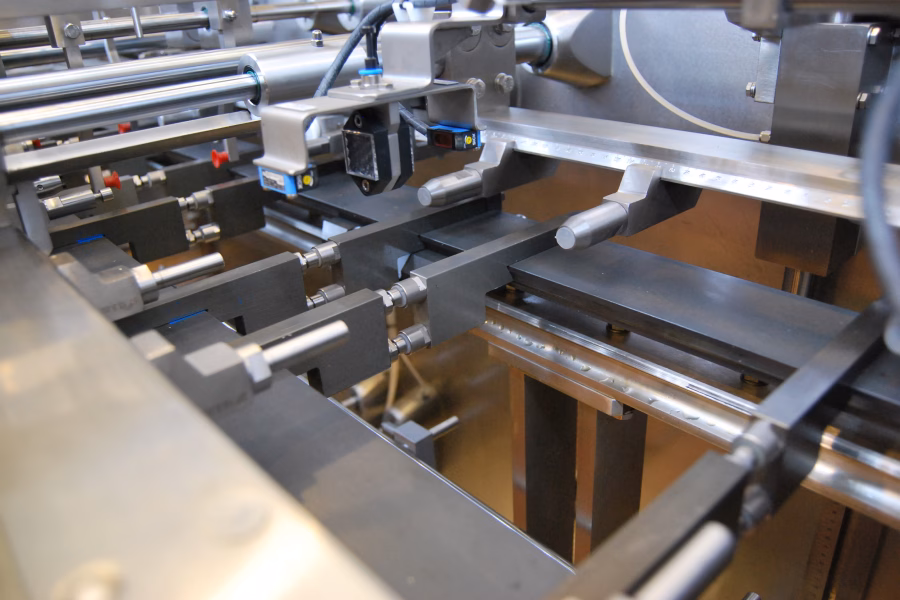

Special Gripper for Heavy Pouch
A special gripper is designed in order to grip a high-weight pouch, the pouch is held by two points instead of one.
* Some of the items listed are optionals
Technical specifications
| Machines | H640 3 | H640 4 | H640 FET | H640 FEQ |
|---|---|---|---|---|
| Max. Volume (cc) | 2500 | 1500 | 3000 | 1800 |
| Max. Output (p.p.m.) | 165 | 220 | 150 | 200 |
| Max. Format (mm) | 209 x 400 | 160 x 400 | 210 x 400 | 160 x 400 |
| Min. Format (mm) | 120 x 150 | 118 x 150 | 120 x 150 | 120 x 150 |
| Filling Stations | 1-2 | 1-2 | 1-2 | 1-2 |
The final speed will depend on product and film characteristics, it may change according to projects.
A wide range of dosing systems for all types of products on the market. More information
| Machines | H640 3 | H640 4 | H640 FET | H640 FEQ |
|---|---|---|---|---|
| Liquid / Pasty | ||||
| Pieces | ||||
| Powder | ||||
| Granules |
Perfect close systems for your flexible pouches. More information
| Machines | H640 3 | H640 4 | H640 FET | H640 FEQ |
|---|---|---|---|---|
| Zipper | ||||
| Corner Spout | ||||
| Top Spout | ||||
| Frontal Spout | ||||
| Straw Applic. |
Let automation to enhance your machine downtime. More information
| Machines | H640 3 | H640 4 | H640 FET | H640 FEQ |
|---|---|---|---|---|
| Automatic Changeover | ||||
| Quick Changeover | ||||
| Autosplice Unwinder |
Find your perfect fit for all your designs. More information
| Machines | H640 3 | H640 4 | H640 FET | H640 FEQ |
|---|---|---|---|---|
| Die cut (Shaped Pouch) | ||||
| Tear notch | ||||
| Eurohole | ||||
| Hole Punch | ||||
| Double Scissors | ||||
| Laser cut | ||||
| Round edges |
One coding system for each project. More information
| Machines | H640 3 | H640 4 | H640 FET | H640 FEQ |
|---|---|---|---|---|
| Laser | ||||
| Inkjet | ||||
| Thermo transfer | ||||
| Emboss Coder |
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
| Machines | H640 3 | H640 4 | H640 FET | H640 FEQ |
|---|---|---|---|---|
| Gas Flush | ||||
| Laminar flow | ||||
| UV Lamp | ||||
| Washdown |
