H440

The high-speed solution for the small pouch features up to 110mm pouch width and 240ppm output in the 4-up version

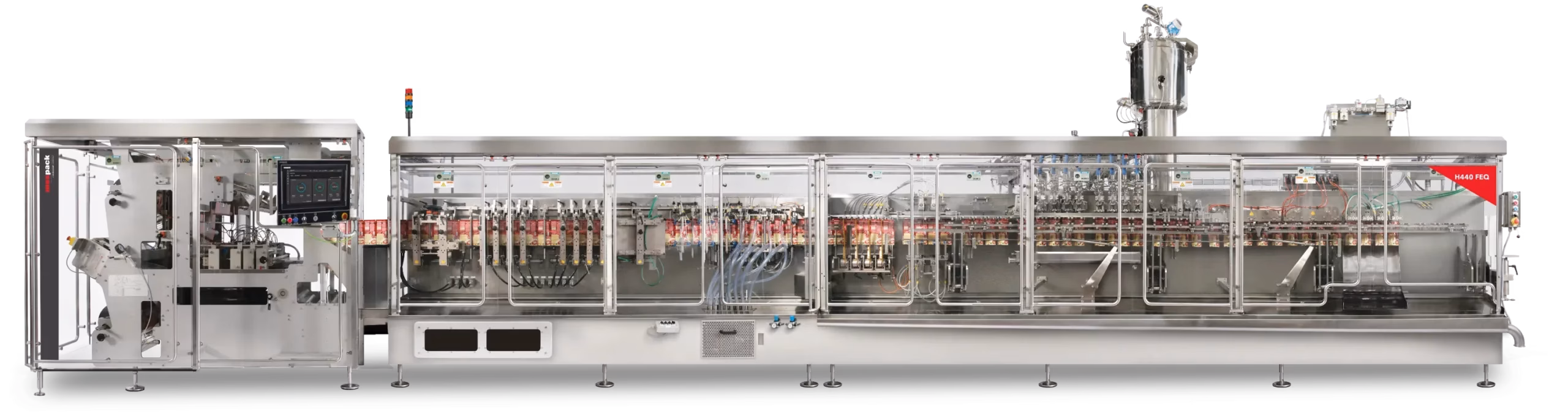

The horizontal packaging machine for small stand-up pouch H440 follows the line of the simplicity and robustness standards of Mespack design. Consequently, this machine offers high-speed solutions for the small and medium flat pouches and stand-up pouches of up to 110mm in width in the 4-up version.

Request Consultation

Fill out to download

Thank you! We have sent the leaflet to your email.

It may take a few minutes to arrive. If you don't see it, please check your spam folder.

H440

Main Standard Features Packaging Formats Specifications

Main standard features

Some of the items listed are optionals

Automatic adjustment seal jaws position

The automatic quick changeover is controlled by servo and can easily be performed by HMI. Furthermore, it avoids operator errors during the changeover process.

Autosplice unwinder

The automatic reel splicing system is designed to eliminate roll change downtime. It allows you to change running web rolls without stopping production.

Additional film compensator rollers

A special compensator unit is designed to transform the continuous unwinder motion film into a smooth forming module intermittent motion. This group is responsible for setting the appropriate tension and film alignment, while acting, at the same time, as a film lung.

Quick Changeover

A quick changeover reduce material waste when the format is changed. Both automatic and mechanic quick changeovers can reduce time, film waste, energy and avoid human error. It can reduce up to 20-40% in changeover time compared to manual changeover.

Automatic bottom perforator correction system for stand-up pouches

Full servo version available

Athena enabled (HMI and IIoT)

PLC automatic lubrication system.

Pouch reject station

Recyclable ready films

Static pouch stretching prior to top sealing

Packaging Formats

4-Side Seal

4-Side Seal (Square)

Corner Spout

Corner Spout with Handle

Corner Spout Shaped Stand-Up Pouch

Dual Chamber Pouch

Frontal Spout

Glass Shape Flat Pouch

Shaped Flat Pouch

Stand-Up Pouch

Straw Shaped Stand-Up Pouch

Straw Stand-Up Pouch

Top Spout

Top Spout Shaped Stand-Up Pouch

Top Valve Flat Pouch

Zipper Stand-Up Pouch

Technical Specifications

	H440 3	H440 4	H440 FED	H440 FEQ	H440 FET
Max. Volume	350	300	1000	400	850
Min. Output (u./min.)	180	240	120	240	180
Max. Output (u./min.)	180	240	120	240	180
Width x Height min	80x100	80x100	80x100	80x100	80x100
Width x Height max	145x300	110x300	220x300	110x300	145x300
Filling stations	3	3	3	3	3

	H440 3	H440 4	H440 FED	H440 FEQ	H440 FET
Hybrid	—	—	—	—	—
Pre-made pouch	—	—	—	—	—
Rollstock	✓	✓	✓	✓	✓

A wide range of dosing systems for all types of products on the market.

Learn more

	H440 3	H440 4	H440 FED	H440 FEQ	H440 FET
Granules	✓	✓	✓	✓	✓
Liquid / Pasty	✓	✓	✓	✓	✓
Pieces	✓	✓	✓	✓	✓
Powder	✓	✓	✓	✓	✓

Perfect close systems for your flexible pouches.

Learn more

	H440 3	H440 4	H440 FED	H440 FEQ	H440 FET
Corner Spout	✓	✓	✓	✓	✓
Frontal Spout	✓	✓	✓	✓	✓
Inverted Spout	—	—	—	—	—
Straw Applic.	✓	✓	✓	✓	✓
Top Spout	✓	✓	✓	✓	✓
Zipper	✓	✓	✓	✓	✓

Do you need a non-bacterial atmosphere? Mespack offers all that you need.

Learn more

	H440 3	H440 4	H440 FED	H440 FEQ	H440 FET
Gas Flush	✓	✓	✓	✓	✓
Laminar flow	✓	✓	✓	✓	✓
UV Lamp	✓	✓	✓	✓	✓
Washdown	✓	✓	✓	✓	✓

Let automation to enhance your machine downtime.

Learn more

	H440 3	H440 4	H440 FED	H440 FEQ	H440 FET
Automatic Changeover	✓	✓	✓	✓	✓
Autosplice Unwinder	✓	✓	✓	✓	✓
Quick Changeover	✓	✓	✓	✓	✓

Find your perfect fit for all your designs.

Learn more

	H440 3	H440 4	H440 FED	H440 FEQ	H440 FET
Die cut (Shaped Pouch)	✓	✓	✓	✓	✓
Double Scissors	✓	✓	✓	✓	✓
Eurohole	✓	✓	✓	✓	✓
Hole Punch	✓	✓	✓	✓	✓
Laser cut	✓	✓	✓	✓	✓
Round edges	✓	✓	✓	✓	✓
Tear notch	✓	✓	✓	✓	✓
