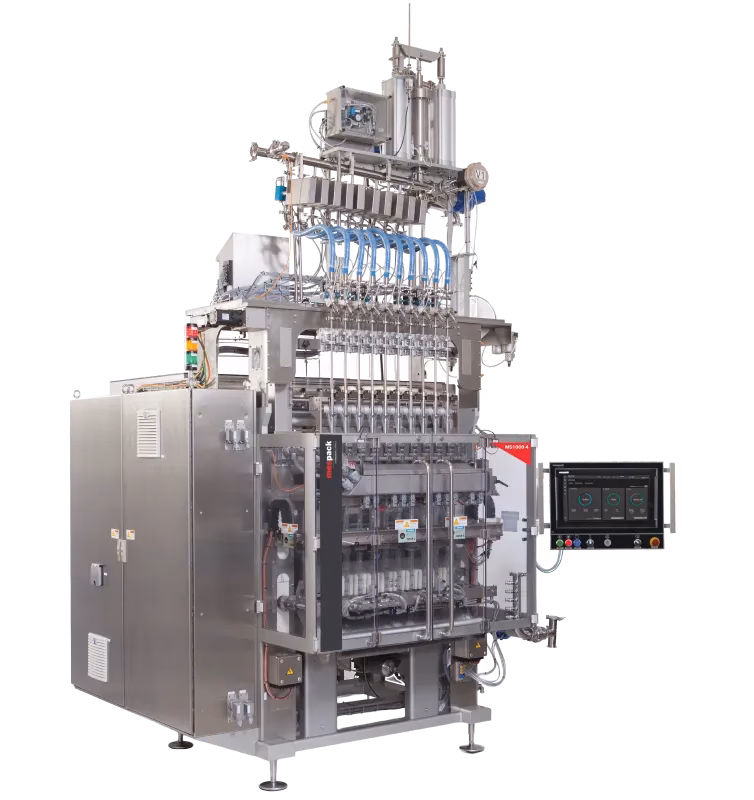

High production fully servo motorized stick pack solution

The high production VFFS multilane stick pack machine MS 1000 ranges, depending on the width of the stick pack, from 4 lanes up to 16 lanes of packaging power covering all production needs, from low to high end.
It is perfect for forming, filling, and sealing stick packs of various products such as liquids, powders and granulates. For this, Mespack takes advantage of all the technology of horizontal machines and applies it to this new concept of vertical filling.

Packaging formats

Main standard features

  • Automatic change over
  • Drives located within the frame
  • Free access to operating side of the machine

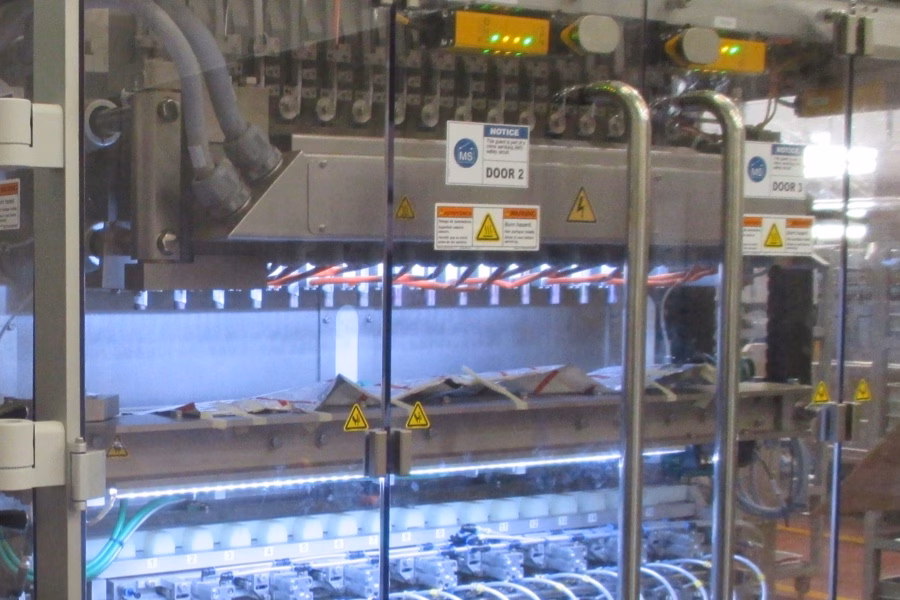

  • Free Maintenance Access to the Interior of the Machine

    Free Maintenance Access to the Interior of the Machine

    Free Maintenance Access to the Interior of the Machine
    Due to the easy opening design of sealing jaws, the machine maintenance can be performed with ease.

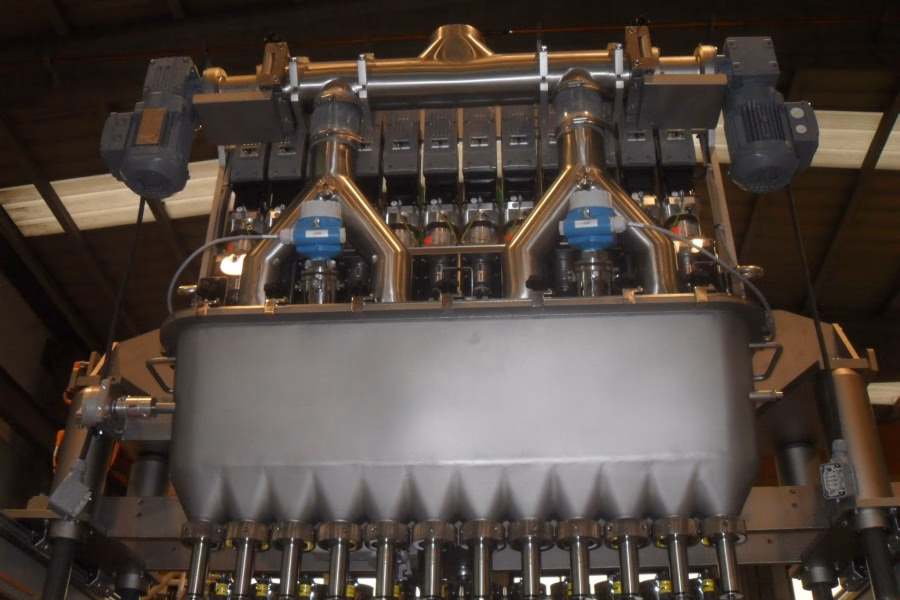

  • Full servo version available

    Full servo version available

    Full servo version available
    The full servo motorized solution gives you more coordinating control of the equipment's movements. The independent control of each group also allows for the increase of speed and ability to reach 80 cycles per minute.

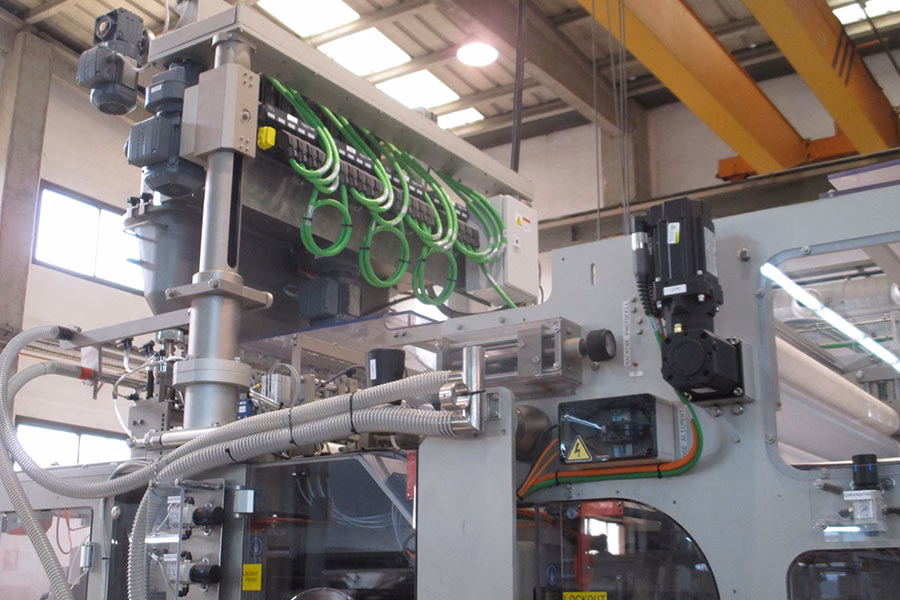

  • Independent film drive unit in unwinder

    Independent film drive unit in unwinder

    Independent film drive unit in unwinder
    Apart of the main film driven system, our MS Serie has got an additional servo driven pulling unit in the unwinder

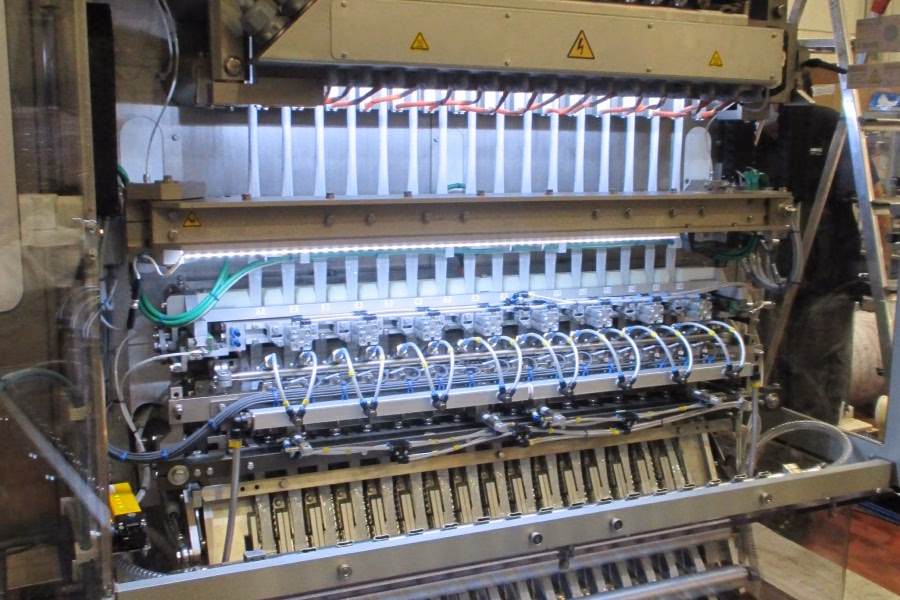

  • Individual Exit Chute

    Individual Exit Chute

    Individual Exit Chute
    Our vertical machines have the individual exist chute with reject possibility. It makes us to save the material waste.
  • Integrated electrical cabinet (independent option available)
  • Maximum reel width 1000mm.
  • Mespack Athena enabled (HMI and IIoT)
  • Monobloc tubular steel structure
  • PLC controlled auto lubrication
  • Recyclable ready films
  • Servo Motorized drag unit

* Some of the items listed are optionals

Technical specifications

MachinesMS10008MS100010MS100012MS100014MS100016MS10004MS10006
Max. Volume (cc)
Max. Output (p.p.m.)480600720840960240360
Max. Format (mm)55 x 19045 x 19035 x 19030 x 19025 x 190115 x 19070 x 190
Min. Format (mm)17 x 5017 x 5017 x 5017 x 5017 x 5017 x 5017 x 50

The final speed will depend on product and film characteristics, it may change according to projects.

A wide range of dosing systems for all types of products on the market. More information
MachinesMS10008MS100010MS100012MS100014MS100016MS10004MS10006
Liquid / Pasty
Pieces
Powder
Granules
Perfect close systems for your flexible pouches. More information
MachinesMS10008MS100010MS100012MS100014MS100016MS10004MS10006
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesMS10008MS100010MS100012MS100014MS100016MS10004MS10006
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesMS10008MS100010MS100012MS100014MS100016MS10004MS10006
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesMS10008MS100010MS100012MS100014MS100016MS10004MS10006
Laser
Inkjet
Thermo transfer
Emboss Code
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesMS10008MS100010MS100012MS100014MS100016MS10004MS10006
Gas Flush
Laminar flow
UV Lamp
Washdown

Request information
