Home » Models » H320SC

High speed solution for pre-made pouches

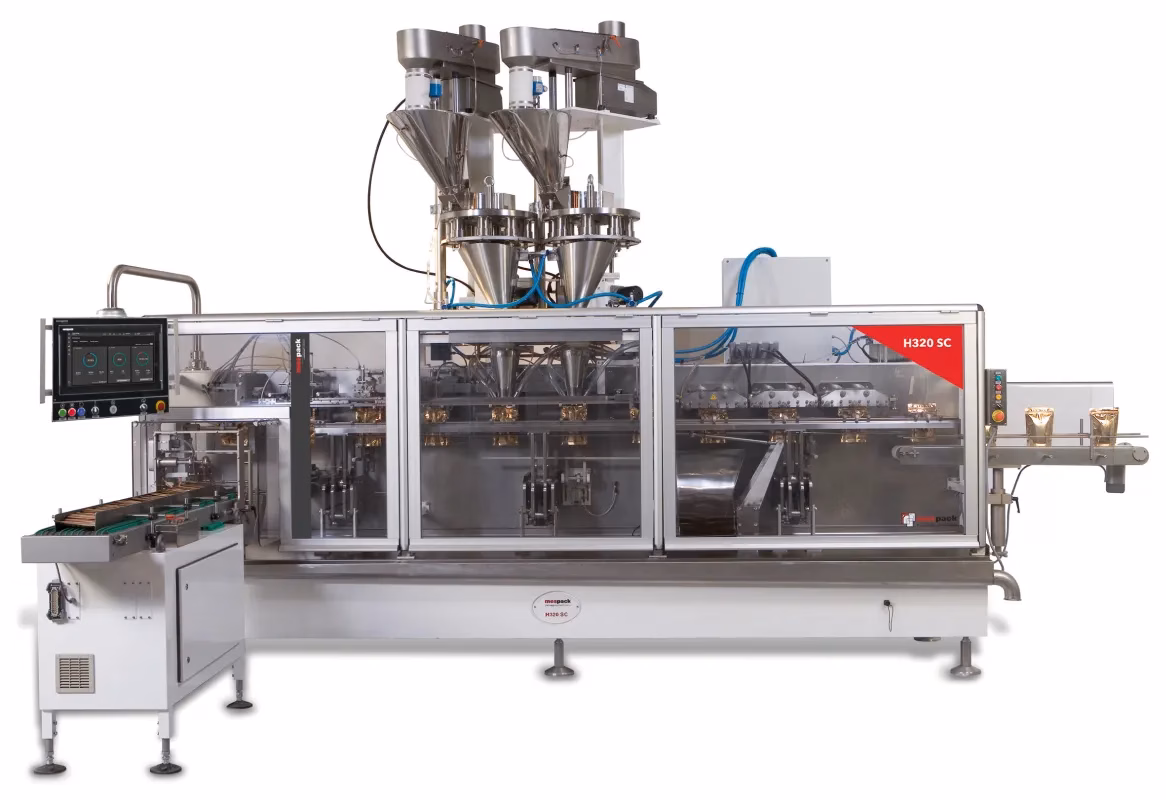

Mespack H320SC is a higHspeed solution for pre-made pouches with a maximum capacity of 3000c.c., it is formed by a pouch feeding conveyor in one or two lanes. Then a pick and place system transfer the pre-made pouches to the main module where they will be opened, filled and top sealed. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc.

Packaging formats

Main standard features

  • Continuous dosing system available
  • Independent TOP jaws pressure control

    Independent TOP jaws pressure control

    Independent TOP jaws pressure control
    Three sets of seal jaws are available for top sealing and cooling. The pressure control of the top jaws is separate for each one. Independent adjustments can be configured on the touch screen.
  • Mespack Athena enabled (HMI and IIoT)
  • PLC automatic lubrication system.
  • Pouch inspection station for vision cameras

    Pouch inspection station for vision cameras

    Pouch inspection station for vision cameras
    This station is prepared to integrate an artificial intelligent vision camera, which is capable of conducting the pouch quality inspection.
  • Pouch reject station
  • Quick change over

    Quick change over

    Quick change over
    A quick changeover reduce material waste when the format is changed. The preparation of a pouch format change requires not only time, but also film and energy consumption. Both automatic and mechanic quick changeovers will reduce time, film, and energy. It is a tool-free and user-friendly operation.
  • Recyclable ready films
  • Static pouch stretching prior to top sealing

Technical specifications

MachinesH320 SC SH320 SC D
Max. volume30001000
Output p.p.m.50100
Size max.320 x 350160 x 350
Size min.90 x 12090 x 120
Filling stations33
A wide range of dosing systems for all types of products on the market. More information
MachinesH320 SC SH320 SC D
Liquid / Pasty
Pieces
Powder
Granules
Perfect close systems for your flexible pouches. More information
MachinesH320 SC SH320 SC D
Zipper
Corner Spout
Top Spout
Frontal Spout
Straw Applic.
Let automation to enhance your machine downtime. More information
MachinesH320 SC SH320 SC D
Automatic Changeover
Quick Changeover
Autosplice Unwinder
Find your perfect fit for all your designs. More information
MachinesH320 SC SH320 SC D
Die cut (Shaped Pouch)
Tear notch
Eurohole
Hole Punch
Double Scissors
Laser cut
Round edges
One coding system for each project. More information
MachinesH320 SC SH320 SC D
Laser
Inkjet
Thermo transfer
Emboss Code
Do you need a non-bacterial atmosphere? Mespack offers all that you need. More information
MachinesH320 SC SH320 SC D
Gas Flush
Laminar flow
UV Lamp
Washdown
